SKU: UKC208D1/HE2308X-NTN

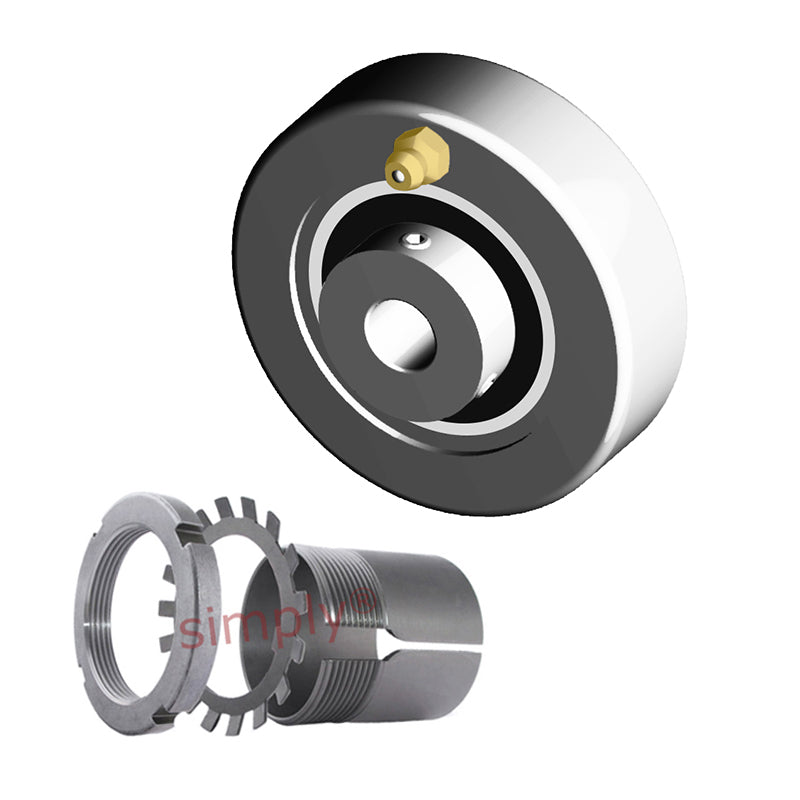

NTN UKC208D1/HE2308X Imperial Cast Iron Cartridge Unit with Adaptor Sleeve Mounted and 1-1/4 inch Bore Insert 3.937 inch Outside Dia - Allow 2-3 Days
NTN UKC208D1/HE2308X Imperial Cast Iron Cartridge Unit with Adaptor Sleeve Mounted and 1-1/4 inch Bore Insert 3.937 inch Outside Dia - Allow 2-3 Days
Out of stock
Share this product
Description
Description
UKC Series (Medium Duty) Cartridge Bearing Unit with Adaptor Sleeve Mounted: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, full width insert
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 31.75mm = 1.25 (1-1/4) inch
- Style:
- UKC
Technical
Technical
| Shaft diameter | 1-1/4 inch |
|---|---|
| H | 3.937 inch |
| A | 1-3/16 inch |
| r | 0.098 inch |
| B<sub>1</sub> | 1.811 inch |
| Mass | 2.9 lbs |
