SKU: UELT204-012D1W3-NTN

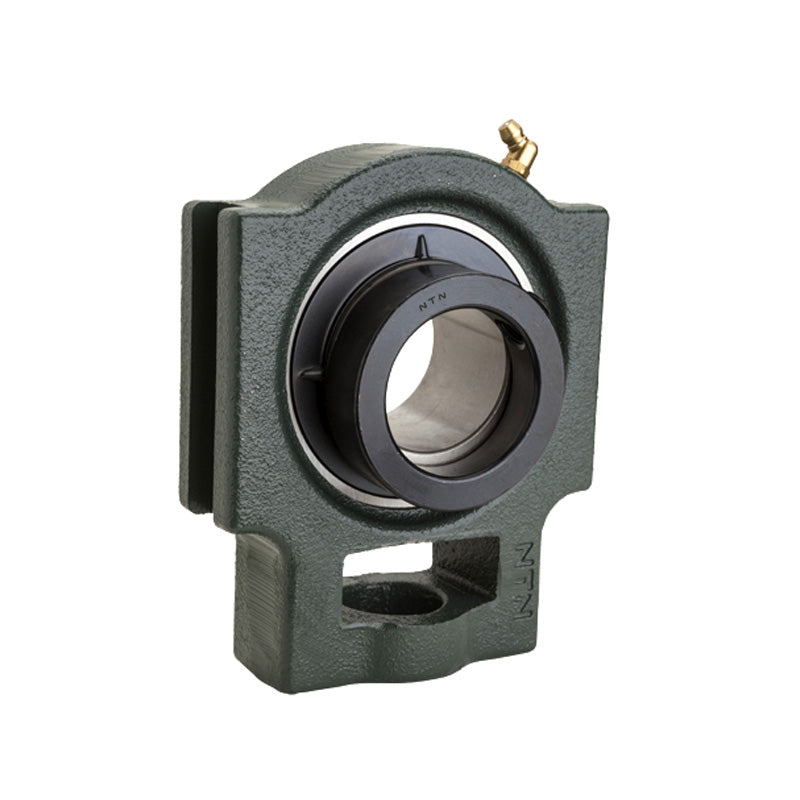

NTN UELT204-012D1W3 Imperial Cast Iron Take Up Unit with 3/4 inch Bore Eccentric Collar Insert - Allow 2-3 Days
NTN UELT204-012D1W3 Imperial Cast Iron Take Up Unit with 3/4 inch Bore Eccentric Collar Insert - Allow 2-3 Days
Out of stock
Share this product
Description
Description
UELT200 Series Cast Iron Take Up Units: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 19.05mm = 0.75 (3/4) inch
- Style:
- UELT
Technical
Technical
| Shaft diameter | 3/4 inch |
|---|---|
| N<sub>1</sub> | 5/8 inch |
| L<sub>2</sub> | 15/32 inch |
| H<sub>2</sub> | 2 inch |
| N<sub>2</sub> | 1-1/4 inch |
| N | 3/4 inch |
| L<sub>3</sub> | 2 inch |
| A<sub>1</sub> | 0.472 inch |
| H<sub>1</sub> | 2-63/64 inch |
| H | 3-1/2 inch |
| L | 3-11/16 inch |
| A<sub>2</sub> | 13/16 inch |
| A | 1-1/4 inch |
| r | 1-5/16 inch |
| L<sub>1</sub> | 2-13/32 inch |
| B<sub>1</sub> | 1.72 inch |
| S | 0.673 inch |
| Mass | 1.3 lbs |
