SKU: UELP317D1W3-NTN

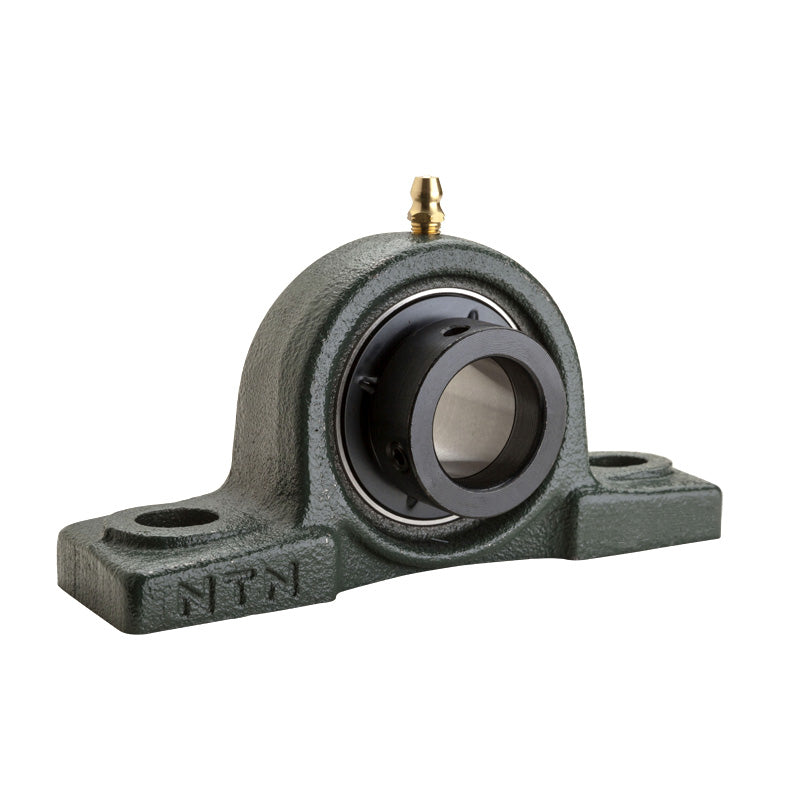

NTN UELP317D1W3 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 85mm Eccentric Collar Insert - Allow 2-3 Days
NTN UELP317D1W3 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 85mm Eccentric Collar Insert - Allow 2-3 Days
Out of stock
Share this product
Description
Description
UELP300 Series 2 Bolt Cast Iron Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 85mm
- Style:
- UELP
- Bolt Hole Centres:
- 320mm
Technical
Technical
| Shaft diameter | 85mm |
|---|---|
| H | 112mm |
| L | 420mm |
| J | 320mm |
| A | 110mm |
| N | 33mm |
| N<sub>1</sub> | 45mm |
| H<sub>1</sub> | 40mm |
| H<sub>2</sub> | 220mm |
| L<sub>1</sub> | 120mm |
| B<sub>1</sub> | 109.5mm |
| S | 42.05mm |
| Fixing bolt | M27 |
| Mass | 21 kg |
