SKU: UCFE211D1-NTN

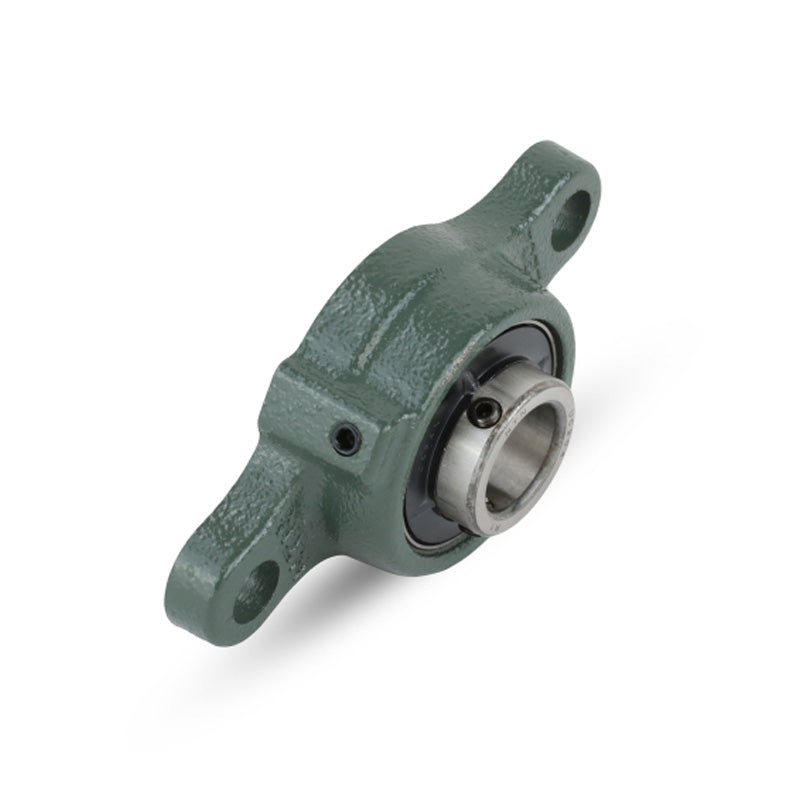

NTN UCFE211D1 Metric Ductile Cast Iron Two Bolt Rhombus Flange Housing 55mm Bore Insert - Allow 2-3 Days
NTN UCFE211D1 Metric Ductile Cast Iron Two Bolt Rhombus Flange Housing 55mm Bore Insert - Allow 2-3 Days
Out of stock
Share this product
Description
Description
UCFE200 Series 2 Bolt Ductile Cast Iron Rhombus Flange Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 55mm
- Style:
- UCFE
- Bolt Hole Centres:
- 184mm
Technical
Technical
| Shaft diameter | 55mm |
|---|---|
| H | 216mm |
| J | 184mm |
| A<sub>2</sub> | 25mm |
| A<sub>1</sub> | 18mm |
| A | 41mm |
| N | 19mm |
| L | 118mm |
| A<sub>0</sub> | 58.4mm |
| B | 55.6mm |
| S | 22.2mm |
| Fixing bolt | M16 |
| Mass | 2.1 kg |
