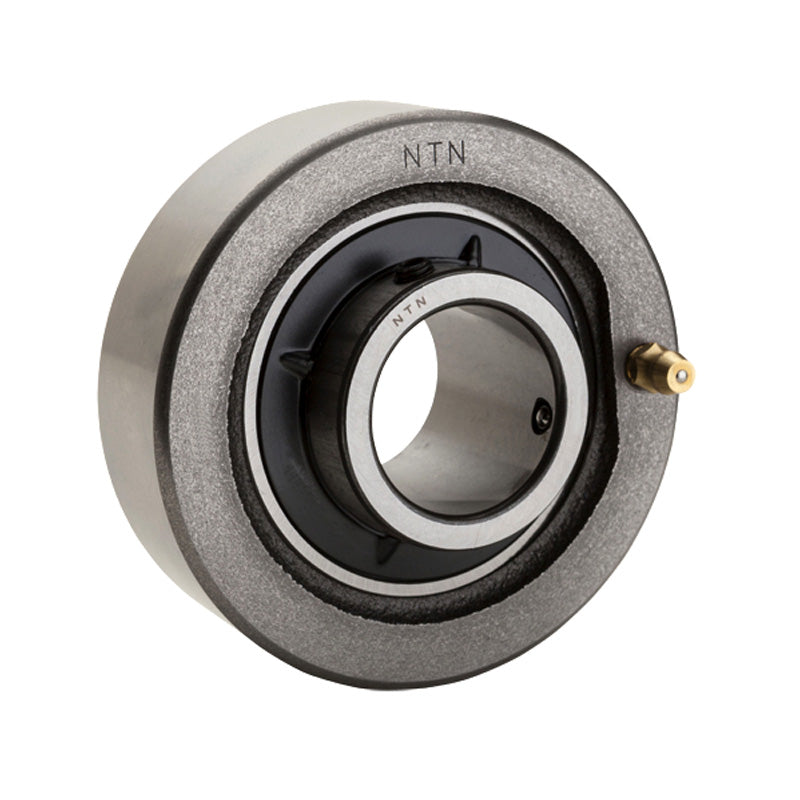

NTN UCC320-314D1 Imperial Cast Iron Cartridge Unit with 3-7/8 inch Bore Insert 10.2362 inch Outside Dia - Allow 2-3 Days

UCC Series (Normal Duty) Cartridge Bearing Unit: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, full width insert

Brand / Quality:

NTN - High Quality

Inside Diameter:

98.43mm = 3.875 (3-7/8) inch

Style:

UCC
