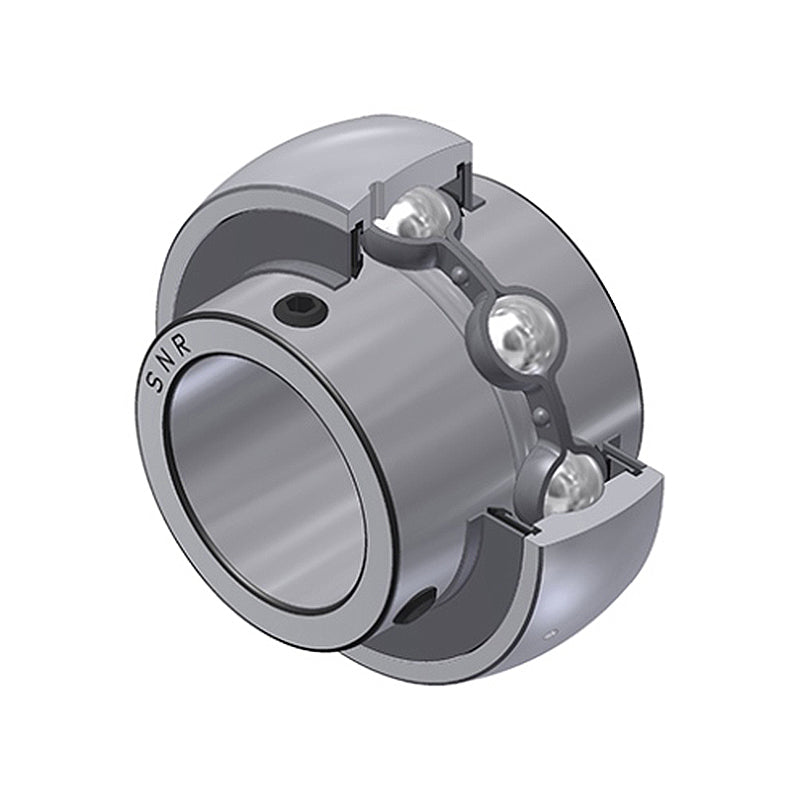

SNR UC305-16G2T04 Imperial Full Width Spherical Outer Low Temp Bearing Insert 1 inch Bore 62mm Outside Diameter with Grub Screws - Allow 2-3 Days

SNR UC-T04 Full Width Spherical Outer Low Temp Bearing Insert with Grub Screws: This bearing insert is engineered for low-temperature applications, operating effectively down to -40°C. Each steel insert includes a single lip seal and slinger on both sides, along with a wide inner ring design. It incorporates a zinc-coated sheet steel retainer over-molded with NBR, featuring an axially preloaded seal lip and a preconnected, zinc-coated sheet steel slinger for enhanced protection against mechanical impacts and particles. This insert is designed to withstand medium to high rotation speeds, ensuring reliable performance even in low-temperature environments.
Benefits: High-quality brand, high-performance, low temperature

Brand / Quality:

SNR - High Quality

Thread Size:

1/4-28UNF

Inside Diameter:

25.4mm = 1 inch

Outside Diameter:

62mm

Width:

38mm

Temperature Range:

Low Temp

Style:

UC
