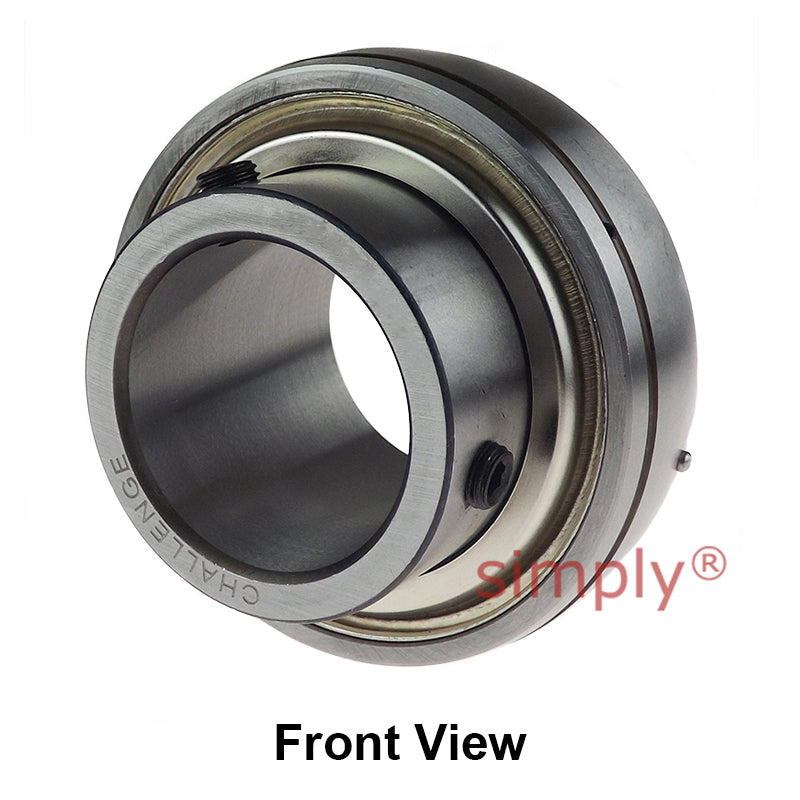

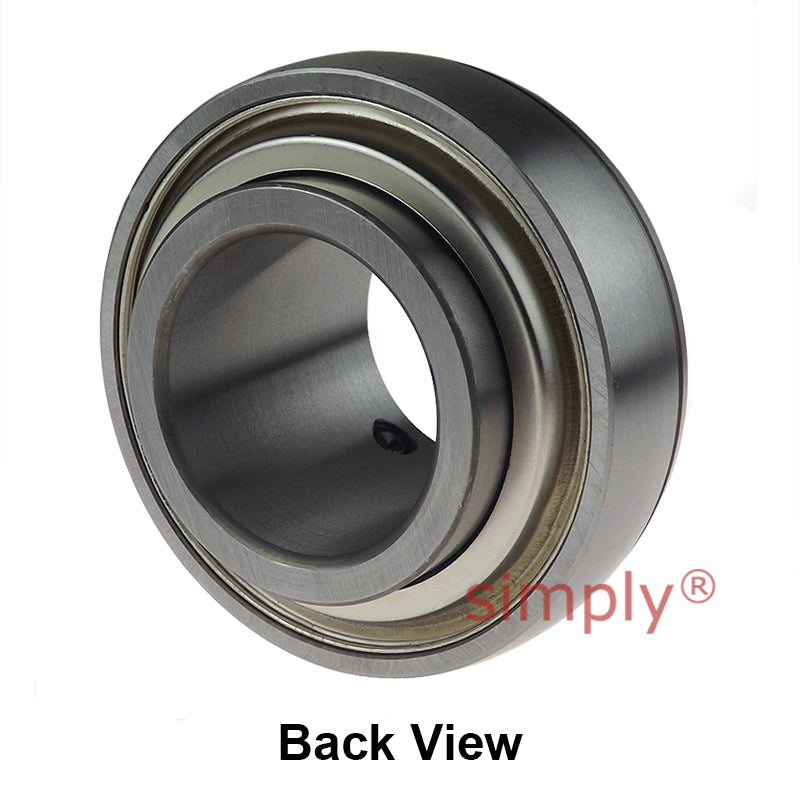

Challenge UC212 Metric Insert with Grub Screws with 60mm Bore 110mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Challenge UC212 Metric Insert with Grub Screws with 60mm Bore 110mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Regular price
CHF 76.00
ex VAT
Regular price
Sale price
CHF 76.00
ex VAT
Equivalent to: UC.212
In stock
Price Break
3+
CHF 60.70
5+
CHF 57.29
9+
CHF 56.60
19+
CHF 55.92
49+
CHF 55.24
74+
CHF 54.56
99+
CHF 51.15
199+
CHF 50.47
249+
CHF 49.78
499+
CHF 49.10
999+
CHF 47.74
Description
Description
UC Insert with Grub Screws: These normal-duty bearing units are fitted with a triple lip seal. These bearings are perfect for agricultural applications where the bearings are exposed to contamination. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. Also available as a complete housing assembly.
Benefits: High tolerance to harsh environments, cost effective bearing, re-lubricatable, grub screw fixing
Equivalent: UC.212
- Brand / Quality:
- Challenge - Good Quality
- Inside Diameter:
- 60mm
- Style:
- UC
Technical
Technical
| Shaft Diameter d | 60mm |
|---|---|
| Outside Diameter D | 110mm |
| Overall Width Bi | 65.1mm |
| Inner Race Width Be | 27mm |
| Back of Bearing to Centre Line n | 25.4mm |
| Front of Bearing to Centre Line m | 39.7mm |
| Dimension G | 10mm |
| Grub Screws x 2 | M10x1.25mm |
| Load Rating (Dynamic) | 4100kg |
| Load Rating (Static) | 3150kg |
| Max Speed | 1500 rev/min |
| Grease Nipple Thread Size | M8 |
| Working Temperature | -30°C to +120°C |
