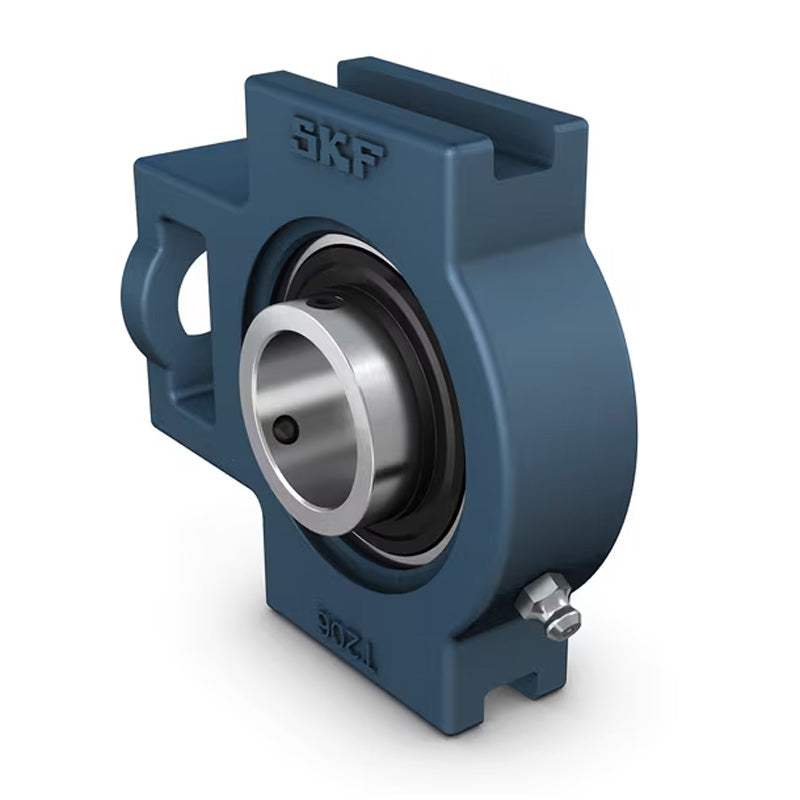

• SKF TU30FM Eccentric Locking Collar Take Up Unit 30mm Bore
1 1

SKU: TU30FM-SKF

SKF TU30FM Eccentric Locking Collar Take Up Unit 30mm Bore

SKF TU30FM Eccentric Locking Collar Take Up Unit 30mm Bore
CHF 81.00 ex VAT
CHF 81.00 ex VAT
Sale Sold out

In stock

Price Break
10+ CHF 63.97
20+ CHF 60.38
30+ CHF 59.66
40+ CHF 58.94
50+ CHF 58.22
75+ CHF 57.51
100+ CHF 53.91
200+ CHF 53.19
250+ CHF 52.47
500+ CHF 51.75
1000+ CHF 50.32
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF Y-bearing Take-Up Units with Cast Housing and an Eccentric Locking Collar: This unit consists of a cast housing and an insert bearing. They are typically mounted in take-up frames and connected by an adjustment screw. A grease fitting is provided in the housing for re-lubrication.
Benefits: Grease fitting allows re-lubrication
Brand / Quality:
SKF - High Quality
Inside Diameter:
30mm
Style:
TU

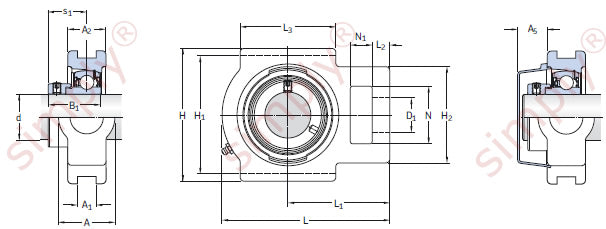

Technical
d 30mm
A 37mm
A1 13.5mm
A2 28mm
B1 35.7mm
D1 22mm
H 104mm
H1 89mm
H2 56mm
L 114mm
L1 70mm
L2 10mm
L3 57mm
N 37mm
N1 16mm
s1 26.7mm
Static load Cr 11.2 kN
Dynamic load Cor 19.5 kN
Fatigue load limit Pu 0.475 kN
Limiting speed 6300 rpm
A5 20mm
Weight 1.25 kg
Compatible end cover ECY206
