SKU: TEN-ARM-SE11-DUN
Dunlop SE11 Chain and V-Belt Tension Arm
- Regular price
- CHF 24.00 ex VAT
- Sale price
- CHF 24.00
- Regular price
-
In stock
Quantity Price Breaks
3
CHF 21.36
5
CHF 20.16
9
CHF 19.92
19
CHF 19.68
49
CHF 19.44
74
CHF 19.20
99
CHF 18.00
199
CHF 17.76
249
CHF 17.52
499
CHF 17.28
999
CHF 16.80
SKU:
TEN-ARM-SE11-DUN

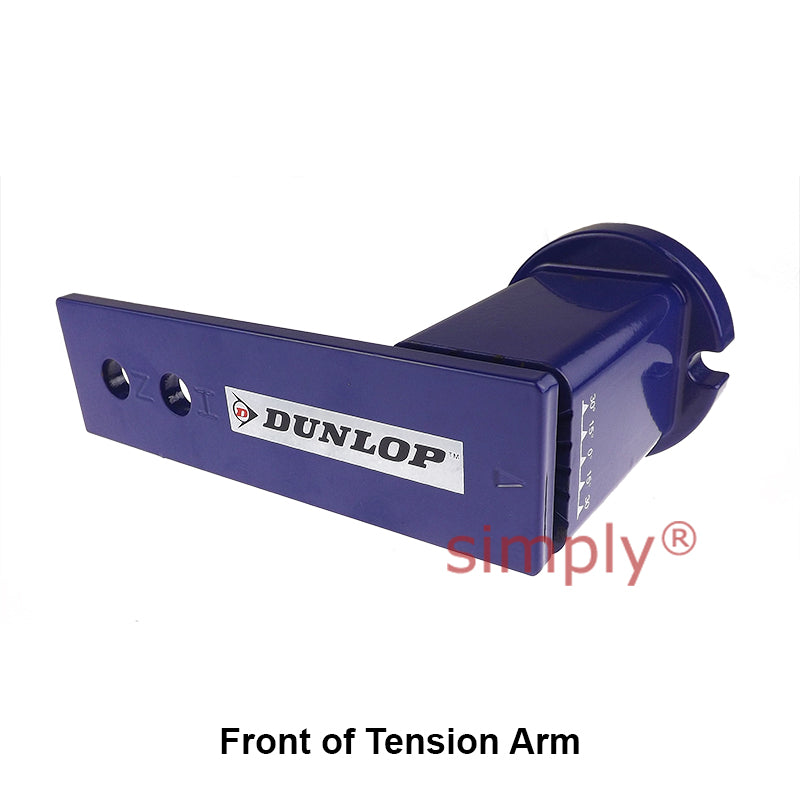

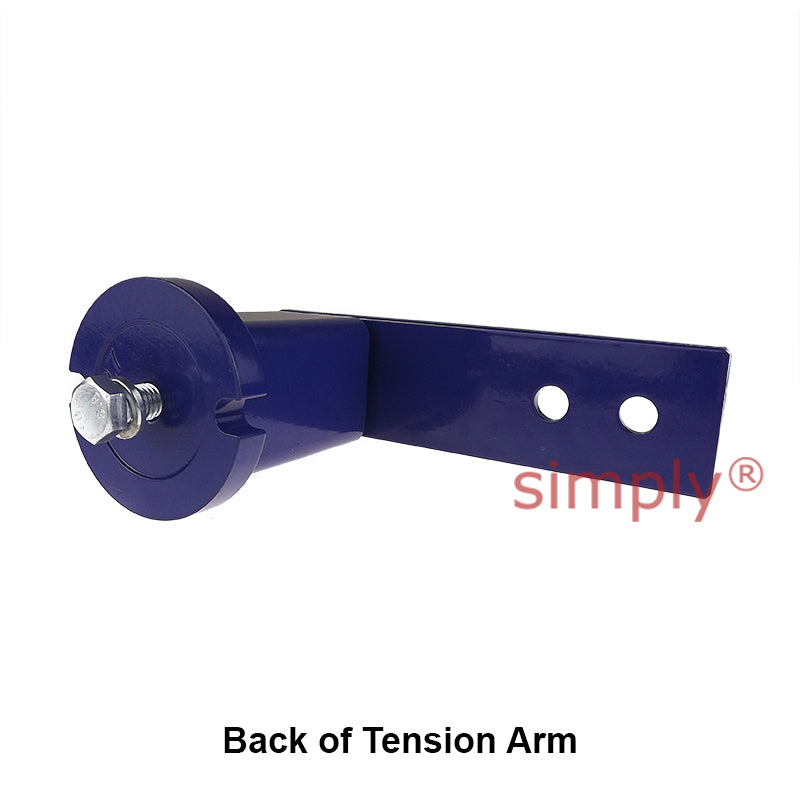

Dunlop SE11 Chain and V-Belt Tension Arm
- Regular price
- CHF 24.00 ex VAT
- Sale price
- CHF 24.00
- Regular price
-
Description
Dunlop Chain and V-Belt Tension Arm: The tensioning element with the specification SE (SE 11 to SE 45) is the mostly used standard unit for tensioning all kinds of chain and belt drives.
Benefits: Suitable for applications in temperature range from -40 deg C to +80 deg C

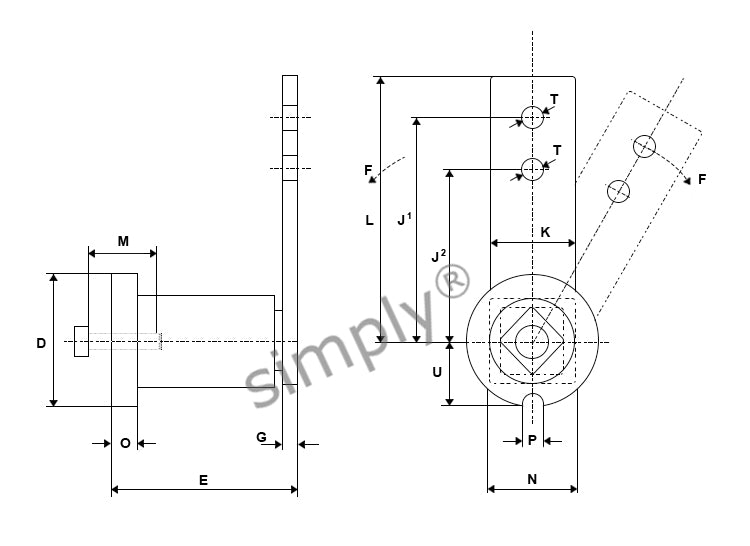

Technical
| Part No. | = | SE11 |
| D | = | 35mm |
| E | = | 51 (+1/-0.5)mm |
| G | = | 5mm |
| H | = | M6 |
| J< | = | sup> |
| 1< | = | /sup> |
| = | 80mm | |
| J< | = | sup> |
| 2< | = | /sup> |
| = | 60mm | |
| K | = | 20mm |
| L | = | 90mm |
| M | = | 20mm |
| N | = | 22mm |
| O | = | 6mm |
| P | = | 8mm |
| T | = | 8.5mm |
| U | = | 16.5mm |
