SKU: SYF50FM-SKF
SKF SYF50FM Small Footprint Cast Iron Plummer Block with Eccentric Collar 50mm Insert
SKF SYF50FM Small Footprint Cast Iron Plummer Block with Eccentric Collar 50mm Insert
Regular price
CHF 144.00
ex VAT
Regular price
Sale price
CHF 144.00
ex VAT
In stock
Price Break
10+
CHF 114.75
20+
CHF 108.30
30+
CHF 107.01
40+
CHF 105.72
50+
CHF 104.44
75+
CHF 103.15
100+
CHF 96.70
200+
CHF 95.41
250+
CHF 94.12
500+
CHF 92.83
1000+
CHF 90.25
Description
Description
|
SKF Y-bearing Plummer Block Units with a Shortened Cast Housing and Locking Collar: These units contain a grey cast iron housing with a grease fitting in the housing which allows it to be re-lubricated. This makes them suitable for bearing arrangements that operate in high levels of contamination, high speeds, high temperatures or relatively heavy loads. The housing design has a shortened base that contains two threaded holes in the support base. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 50mm
- Style:
- SYF
- Bolt Hole Centres:
- 101.6mm

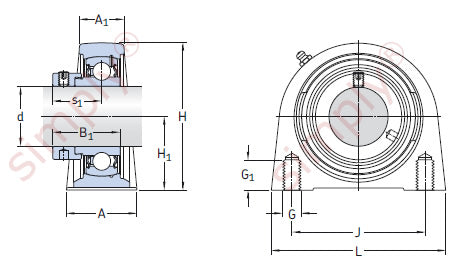

Technical
Technical
| d | 50mm |
|---|---|
| A | 54mm |
| A1 | 34mm |
| B1 | 43.7mm |
| H | 114.5mm |
| H1 | 57.2mm |
| J | 101.6mm |
| L | 135mm |
| G | M16 |
| G1 | 25.5mm |
| s1 | 32.7mm |
| Static load Cr | 23.2 kN |
| Dynamic load Cor | 35.1 kN |
| Fatigue load limit Pu | 0.98 kN |
| Limiting speed | 4000 rpm |
| Weight | 2.2 kg |
| Housing | SYF510 |
| Insert | YET210 |
