SKU: SY-80-S-IKO

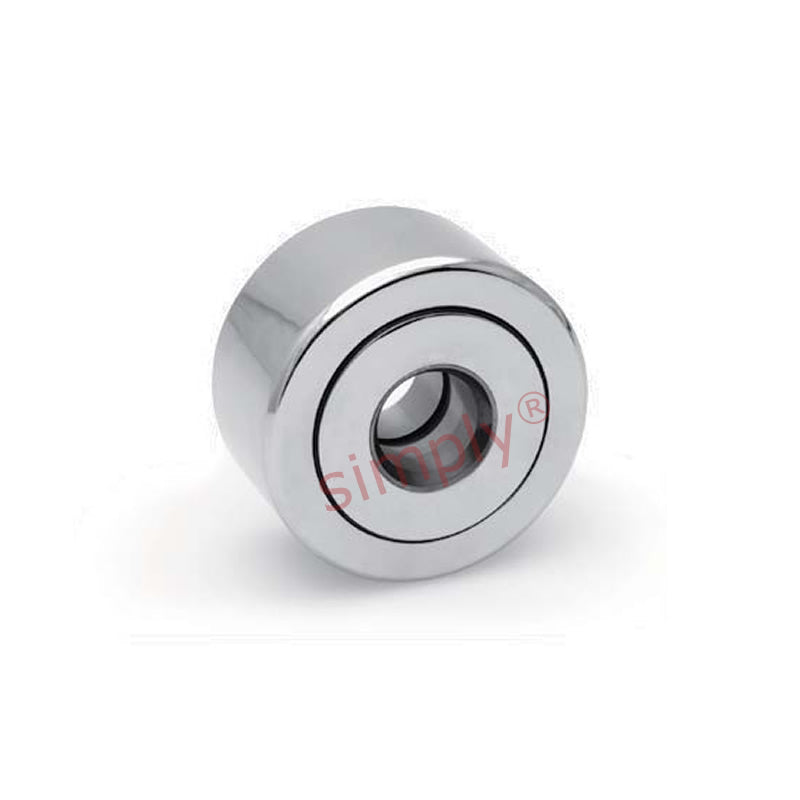

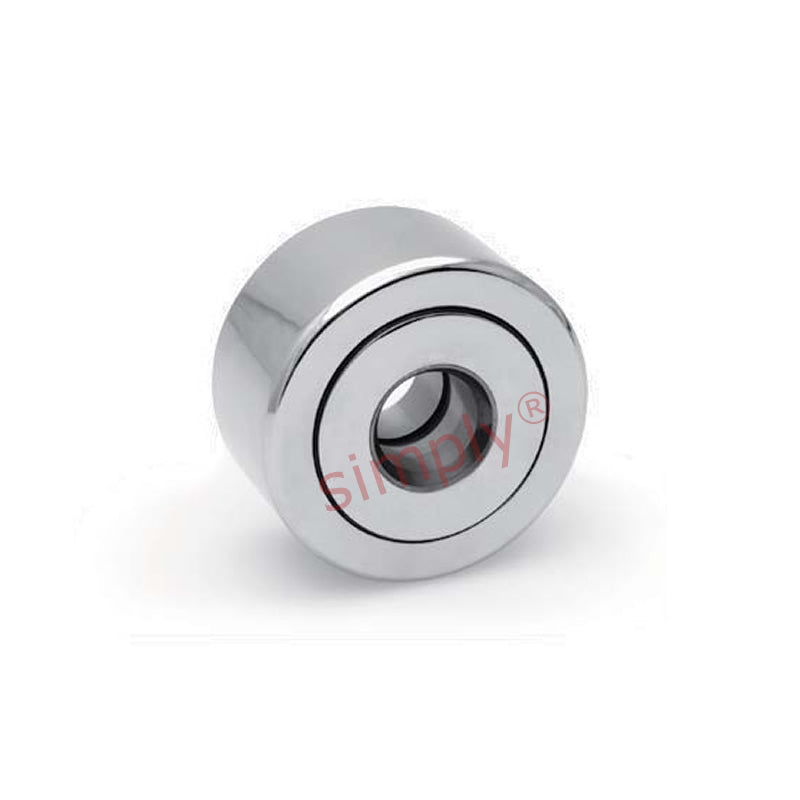

IKO SY80S Stainless Steel Sealed Cylindrical Cam Yoke Roller 0.75x2.5x1.5625 inch Allow 7-10 Days
IKO SY80S Stainless Steel Sealed Cylindrical Cam Yoke Roller 0.75x2.5x1.5625 inch Allow 7-10 Days
Out of stock
Description
Description
|
Stainless Steel Sealed Cam Yoke Roller: These bearings are dimensionally interchangeable with standard cam yoke rollers offered by other major manufacturers. The Seal Tight design minimises contamination to keep machinery running longer. These bearings contain a food-grade lubricant to ensure compatibility with any application. Benefits: Minimises contamination, re-lubricatable, high precision manufacturing. Note: Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request. |
- Brand / Quality:
- IKO - High Quality
- Outside Diameter:
- 63.5mm = 2.5 (2-1/2) inch
- Width:
- 39.69mm = 1.563 (1-9/16) inch
Technical
Technical
| A | 2.5 inch |
|---|---|
| B | 0.75 inch |
| C | 1.5 inch |
| D | 1.5625 inch |
| E | 1-11/16 inch |
| F | 1/8 inch |
| Recommended shaft diameter | 0.7497 inch |
| Basic dynamic rating | 10430 lbs |
| Max static capacity | 12335 lbs |
