SKU: SONL248-548-SKF

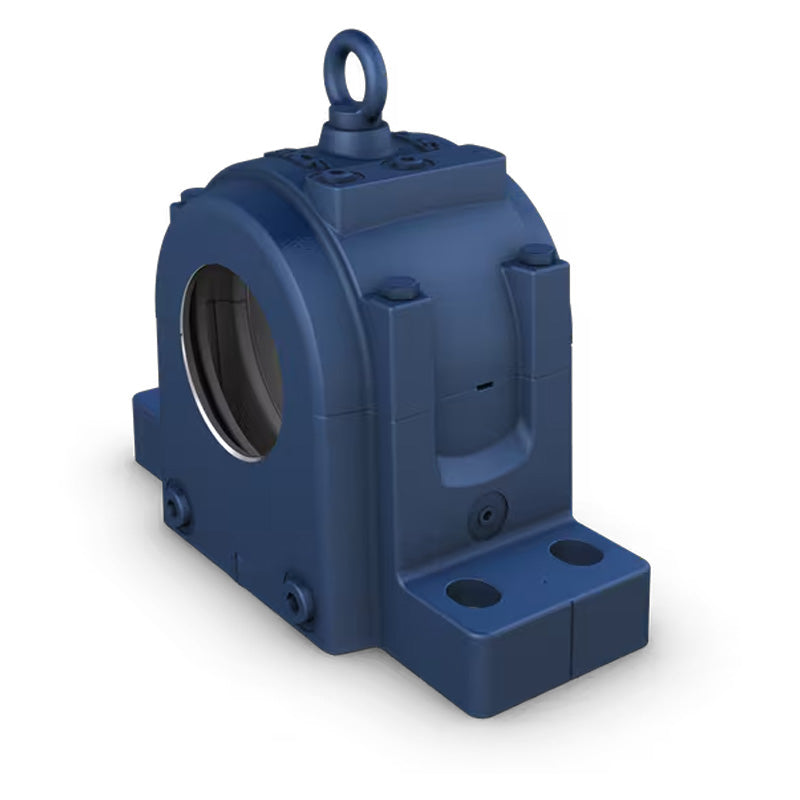

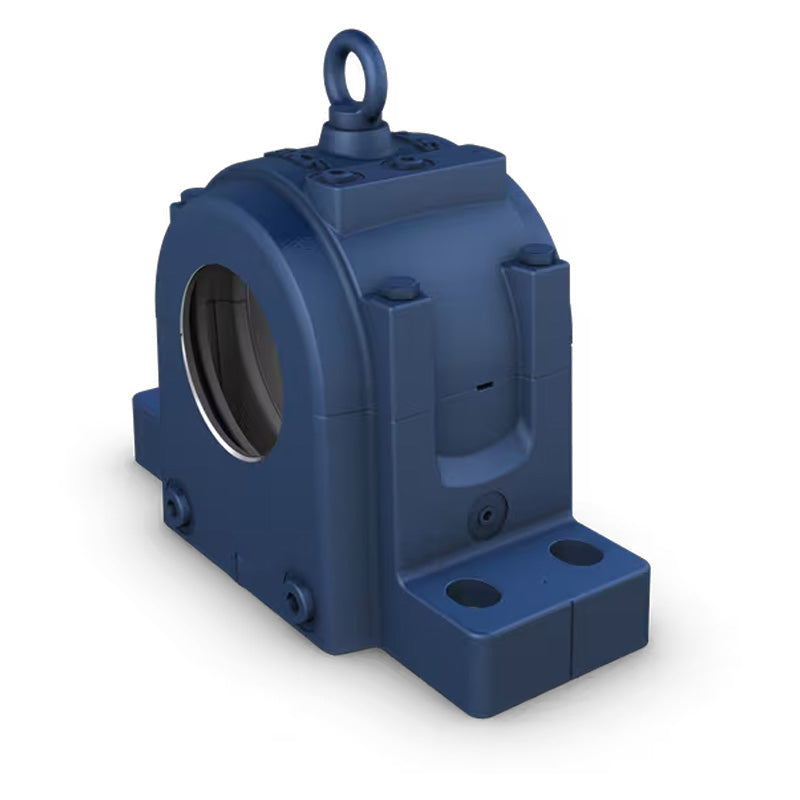

SKF SONL248-548 Cast Iron Split Pillow Block Housing
SKF SONL248-548 Cast Iron Split Pillow Block Housing
Out of stock
Description
Description
|
SKF SONL Split Plummer Block Housings: SONL plummer block housings are split housings consisting of a cap and base. They are made of grey cast iron and are painted block using a water based alkyd/acryl paint which protects the housing in accordance with ISO 12944-2, corrosivity category C2 (i.e. exterior atmospheres with low level of pollution, interior atmospheres where condensation may occur). The housings have a deep reservoir that holds a large volume of oil so that heat can be dissipated effectively. The housings have four holes cast into the base for attachment bolts. Benefits: Strong, stiff and simple design, simple mounting, deep sump for lower operating temperatures. |
- Brand / Quality:
- SKF - High Quality
- Bolt Hole Centres:
- 740mm
Technical
Technical
| da | 220mm |
|---|---|
| Ca | 148mm |
| Da | 440mm |
| A | 368mm |
| A1 | 290mm |
| A2 | 244mm |
| AA | 394mm |
| AB | 420mm |
| d1 | 270mm |
| B1 | 150mm |
| H | 625mm |
| H0 | 734mm |
| H1 | 340mm |
| H2 | 100mm |
| J | 740mm |
| J1 | 190mm |
| L | 900mm |
| N | 50mm |
| N1 | 42mm |
| S | 210mm |
| PG | G 3/4 |
| P1 | 110mm |
| P2 | 115mm |
| RG | G 1-1/2 |
| R1 | 400mm |
| R2 | 41mm |
| O1 | 216mm |
| O2 | 244mm |
| J6 | 800mm |
| N4 max | 20mm |
| ba | 105mm |
| bb | 315mm |
| s2 | 45.5mm |
| Weight | 456 kg |
