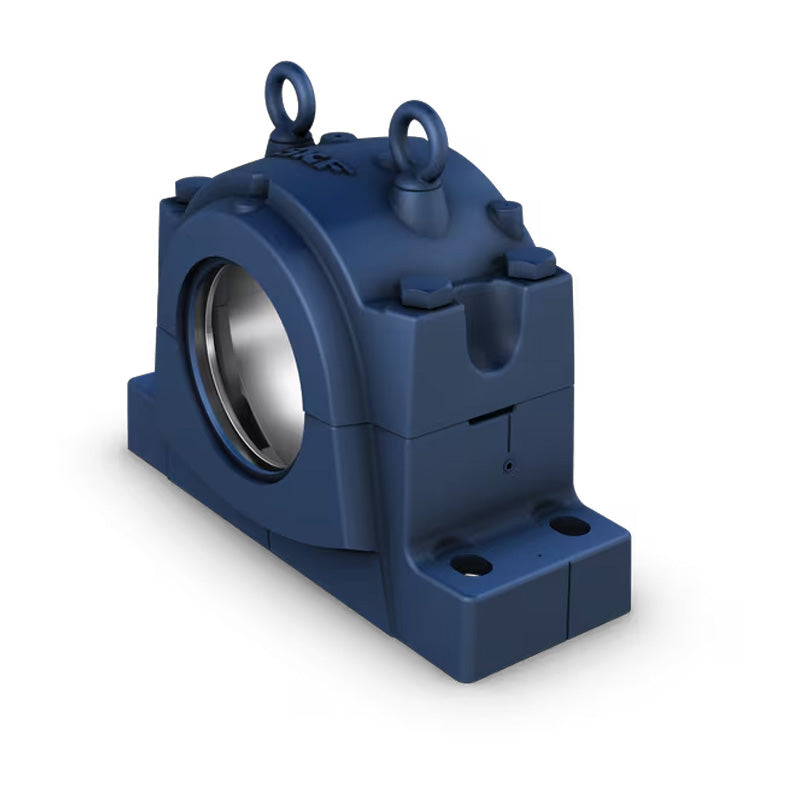

SKF SNL23252K/240 Cast Iron Split Pillow Block Housing for Bearings on an Adapter Sleeve with Standard Seals Complete Assembly
SKF SNL23252K/240 Cast Iron Split Pillow Block Housing for Bearings on an Adapter Sleeve with Standard Seals Complete Assembly
Equivalent to: SE23252K/240
Out of stock
Description
Description
|
SKF SNL Split Plummer Block Housings: SNL plummer block housings in the 30, 31 and 32 series are robust and suitable for tough operating conditions. They allow maximum service life to be achieved with the incorporated bearings with less need for maintenance. Benefits: Cost-effective bearing arrangements can be made with different housing variants and seal designs, easy installation. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 240mm
- Bolt Hole Centres:
- 710mm
Technical
Technical
| Housing | SNL3252 |
|---|---|
| Seal | TS64/240 |
| Bearing | 23252CCK/W33 |
| Adapter Sleeve | OH2352H |
| Fixing Rings | 2 x FRB10/480 |
| End Cover | ETS64 |
| da | 240mm |
| A | 350mm = 13.78 inch |
| A1 | 310mm = 12.2 inch |
| A2 | 360mm = 14.17 inch |
| A3 | 445mm = 17.52 inch |
| X | 22mm = 0.87 inch |
| H | 591mm = 23.27 inch |
| H1 | 300mm = 11.81 inch |
| H2 | 110mm = 4.33 inch |
| L | 830mm = 32.68 inch |
| J | 710mm = 27.95 inch |
| J1 | 190mm = 7.48 inch |
| S | 151mm = 5.94 inch |
| G | 36mm = 1-1/2 inch |
| Weight | 469 kg |
