SKU: SNL212-SKF

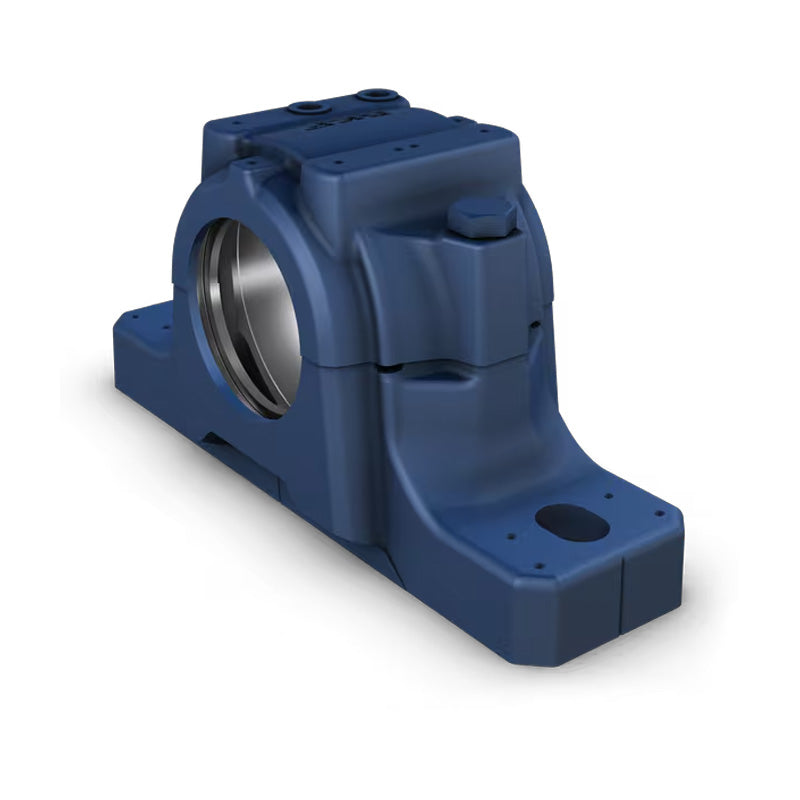

SKF SNL212 Cast Iron Split Pillow Block Housing
SKF SNL212 Cast Iron Split Pillow Block Housing
Regular price
CHF 130.00
ex VAT
Regular price
Sale price
CHF 130.00
ex VAT
Equivalent to: SE212
In stock
Price Break
4+
CHF 103.82
9+
CHF 97.99
19+
CHF 96.83
29+
CHF 95.66
39+
CHF 94.49
49+
CHF 93.33
59+
CHF 87.49
69+
CHF 86.33
79+
CHF 85.16
89+
CHF 83.99
99+
CHF 81.66
Description
Description
|
SKF SNL Split Plummer Block Housings: These plummer block housings enable the full service life capability of the incorporated bearings to be used with less need for maintenance. This supports efforts of the user to further reduce maintenance costs. As the housings are very stiff, they are insensitive to uncontrolled and excessive tightening of the attachment bolts. These housings are made of grey cast iron and feature two attachment bolts. Benefits: A wide range of different seal types available, easy installation. |
Equivalent: SE212
- Brand / Quality:
- SKF - High Quality
- Bolt Hole Centres:
- 210mm
Technical
Technical
| da | 60mm |
|---|---|
| db | 70mm |
| A | 4-1/2 inch = 105mm |
| A1 | 2-3/4 inch = 70mm |
| A2 | 4-5/8 inch = 117mm |
| A3 | 7-1/8 inch = 180mm |
| H | 5-1/4 inch = 134mm |
| H1 | 2.756 inch = 70mm |
| H2 | 1-3/16 inch = 30mm |
| J Max | 8-7/16 inch = 215mm |
| J Min | 8-1/8 inch = 205mm |
| J | 8-5/16 inch = 210mm |
| L | 10-1/16 inch = 255mm |
| N | 1 inch = 24mm |
| N1 | 3/4 inch = 18mm |
| G | 5/8 inch = 16mm |
| Weight | 5.79 kg |
