SKU: SM-UKT205D1/H2305X-NTN

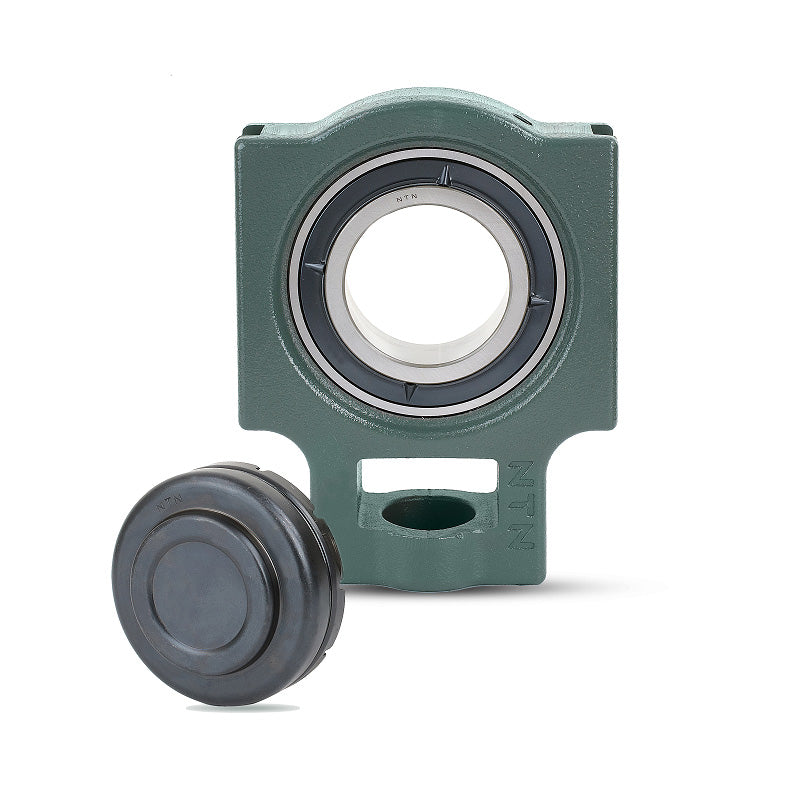

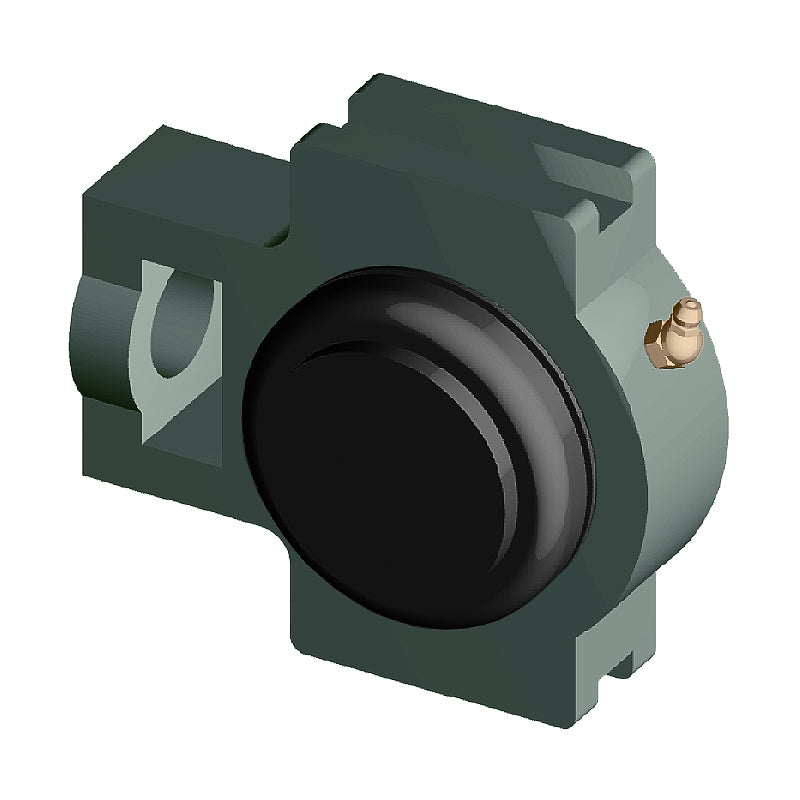

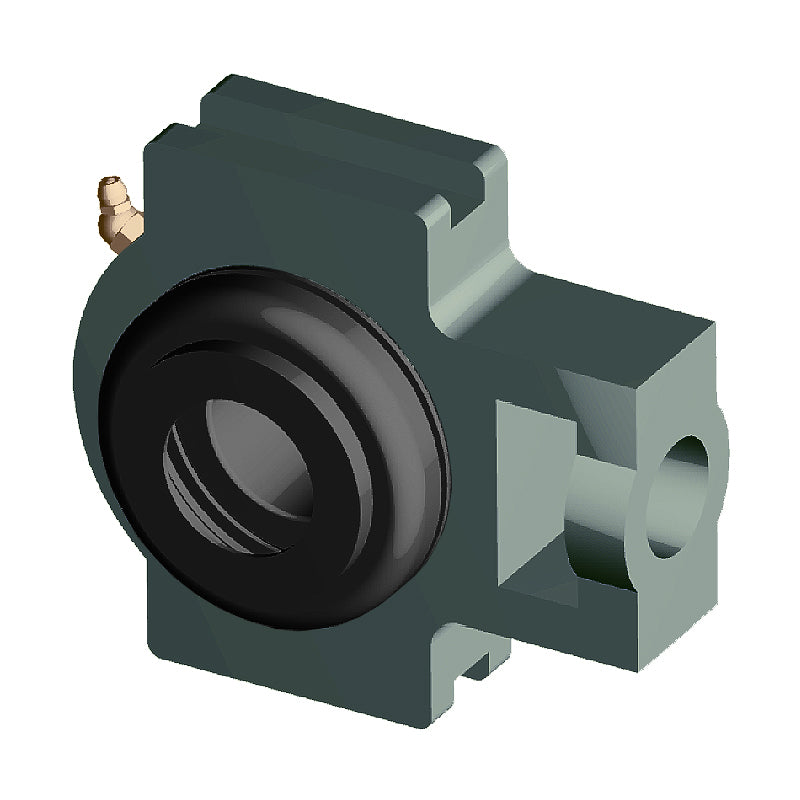

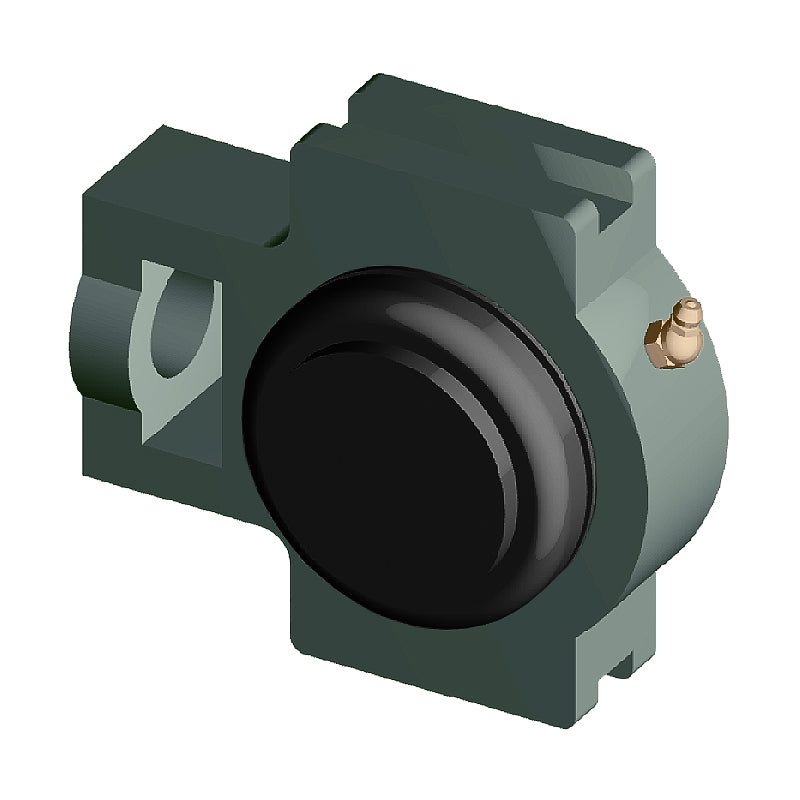

NTN SM-UKT205D1/H2305X Metric Cast Iron Take Up Unit with Steel Plate Cover - Closed Version - Insert and Adaptor Sleeve Fits 20mm Shaft - Allow 2-3 Days
NTN SM-UKT205D1/H2305X Metric Cast Iron Take Up Unit with Steel Plate Cover - Closed Version - Insert and Adaptor Sleeve Fits 20mm Shaft - Allow 2-3 Days
Out of stock
Description
Description
UKT200 Series Normal Duty Take Up Units with Adaptor Sleeve Mounted: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, with adaptor
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 20mm
- Style:
- UKT
Technical
Technical
| Shaft diameter | 20mm |
|---|---|
| N<sub>1</sub> | 16mm |
| L<sub>2</sub> | 12mm |
| H<sub>2</sub> | 51mm |
| N<sub>2</sub> | 32mm |
| N | 19mm |
| L<sub>3</sub> | 51mm |
| A<sub>1</sub> | 12mm |
| H<sub>1</sub> | 76mm |
| H | 89mm |
| L | 97mm |
| A<sub>2</sub> | 24mm |
| A | 32mm |
| r | 35mm |
| L<sub>1</sub> | 62mm |
| B<sub>1</sub> | 35mm |
| t<sub>1</sub> | 7mm |
| A<sub>4</sub> | 57mm |
| Mass | 0.9 kg |
