SKU: SM-UCTX07D1-NTN

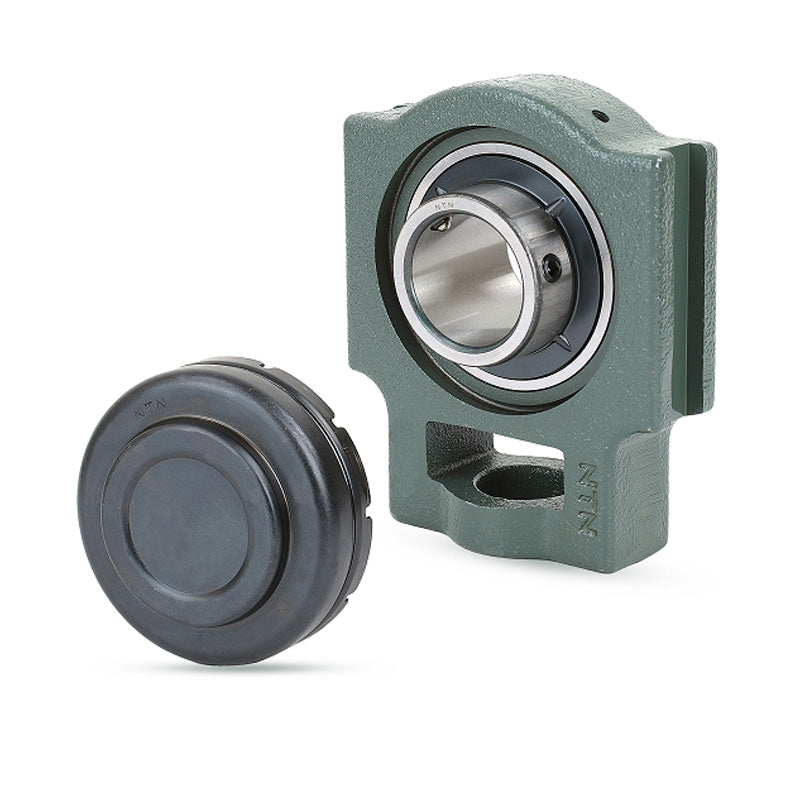

NTN SM-UCTX07D1 Metric Cast Iron Take Up Unit with 35mm Bore Bearing Unit with Steel Plate Cover - Closed Version - Allow 2-3 Days
NTN SM-UCTX07D1 Metric Cast Iron Take Up Unit with 35mm Bore Bearing Unit with Steel Plate Cover - Closed Version - Allow 2-3 Days
Out of stock
Share this product
Description
Description
UCTX Series Medium Duty Take Up Units: These medium-duty bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 35mm
- Style:
- UCTX
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 35mm |
| N<sub>1</sub> | 19mm |
| L<sub>2</sub> | 17mm |
| H<sub>2</sub> | 83mm |
| N<sub>2</sub> | 49mm |
| N | 29mm |
| L<sub>3</sub> | 83mm |
| A<sub>1</sub> | 16mm |
| H<sub>1</sub> | 102mm |
| H | 114mm |
| L | 144mm |
| A<sub>2</sub> | 36mm |
| A | 49mm |
| r | 56mm |
| L<sub>1</sub> | 88mm |
| B | 49.2mm |
| S | 19mm |
| t<sub>1</sub> | 8mm |
| A<sub>4</sub> | 82mm |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 32.5 kN |
| Static load C<sub>0r</sub> | 17.8 kN |
| Fatigue load limit C<sub>u</sub> | 1.24 kN |
| --- | Unit information |
| Mass | 2.8 kg |
