SKU: SFT1.1/4AR-RHP

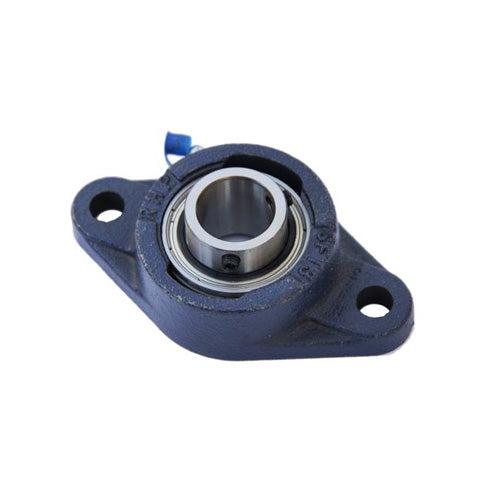

RHP SFT1-1/4AR Two Bolt Oval Cast Iron Flange Housing 1-1/4 inch Bore Insert

RHP SFT1-1/4AR Two Bolt Oval Cast Iron Flange Housing 1-1/4 inch Bore Insert

Out of stock


Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Bore 1-1/4 inch
L 3.252 inch
H 5.563 inch
J 4.587 inch
G 0.4375 inch
A 1.173 inch
A1 1.662 inch
A4 0.5 inch
B1 1.229 inch
s1 0.356 inch
d1 1.575 inch
Dynamic load Cr 19500 N
Static load Cor 11300 N
Rec max speed 5300 rpm
Weight 1.1 kg
Insert <a href="advanced_search_result.php?keywords=1230-1-1/4AG+insonly">1230-1-1/4AG Click Here</a>
Casting group 4
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
