SKU: SAKAC16M-CDX

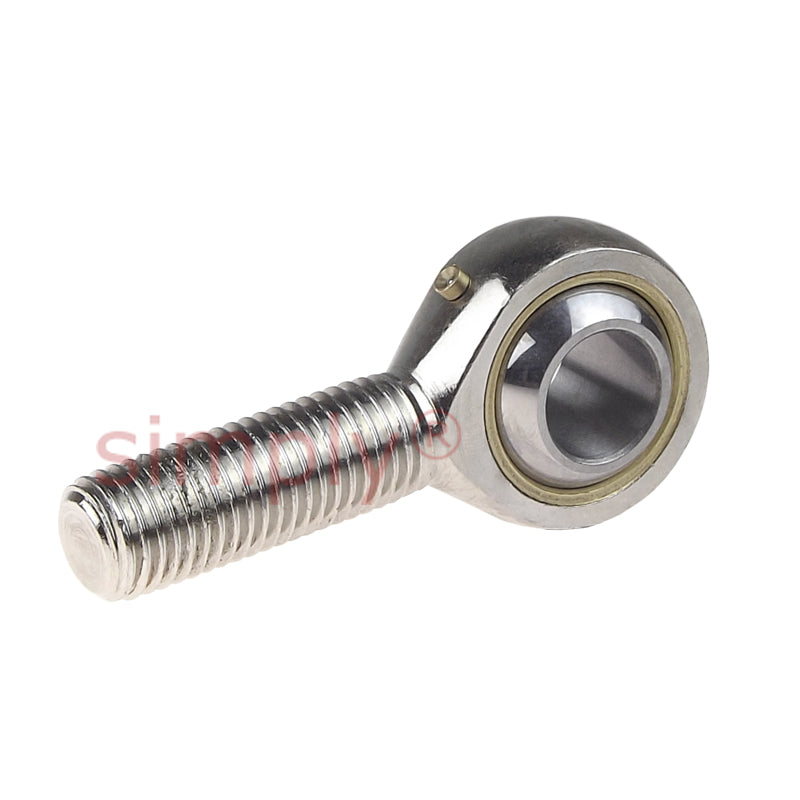

Codex SAKAC16M Right Hand Steel / Bronze Lined Plain Male Rod End M16 Thread
Codex SAKAC16M Right Hand Steel / Bronze Lined Plain Male Rod End M16 Thread
Regular price
CHF 26.00
ex VAT
Regular price
Sale price
CHF 26.00
ex VAT
Equivalent to: POS16 SM16 MB-M16 GAKFR16PB
In stock
Price Break
10+
CHF 20.17
19+
CHF 19.03
29+
CHF 18.81
39+
CHF 18.58
49+
CHF 18.35
74+
CHF 18.13
99+
CHF 16.99
199+
CHF 16.77
249+
CHF 16.54
499+
CHF 16.31
999+
CHF 15.86
Description
Description
|
SAKAC..M Series Rod End Bearings: These rod end bearings comprise of sliding contact surfaces of steel against bronze. They are unsealed and although they are low maintenance they may require re-lubrication from time to time via the re lubrication point in the side of the head this will serve to extend it's life cycle. Operating temperatures are within -30deg C to +180 deg C. Left and Right hand threaded versions are available an L in the part number denotes the left hand option. These are metric sized rod end bearings. Application: Lower load carrying capacity compared to steel/steel rod ends, but more suitable for applications where lubricant starvation might occur. Benefits: Lower maintenance. |
Equivalent: POS16 SM16 MB-M16 GAKFR16PB
- Brand / Quality:
- Codex - Good Quality
- Thread Size:
- M16
- Thread M / F:
- Male
- Thread Direction:
- Right Hand
- Inside Diameter:
- 16mm
- Material:
- Bronze Lined
Technical
Technical
| d | 16mm |
|---|---|
| d2 max | 43mm |
| G | M16 |
| B | 21mm |
| C1 max | 15mm |
| h1 | 66mm |
| Max misalignment angle | 15 degrees |
| Dynamic load | 21.6 kN |
| Static load | 23.2 kN |
| dk | 28.5mm |
| l1 min | 37mm |
| l2 max | 89mm |
| r1 min | 0.3mm |
| Weight | 0.19 kg |
