SKU: S-UKT213AD1/HA2313-NTN

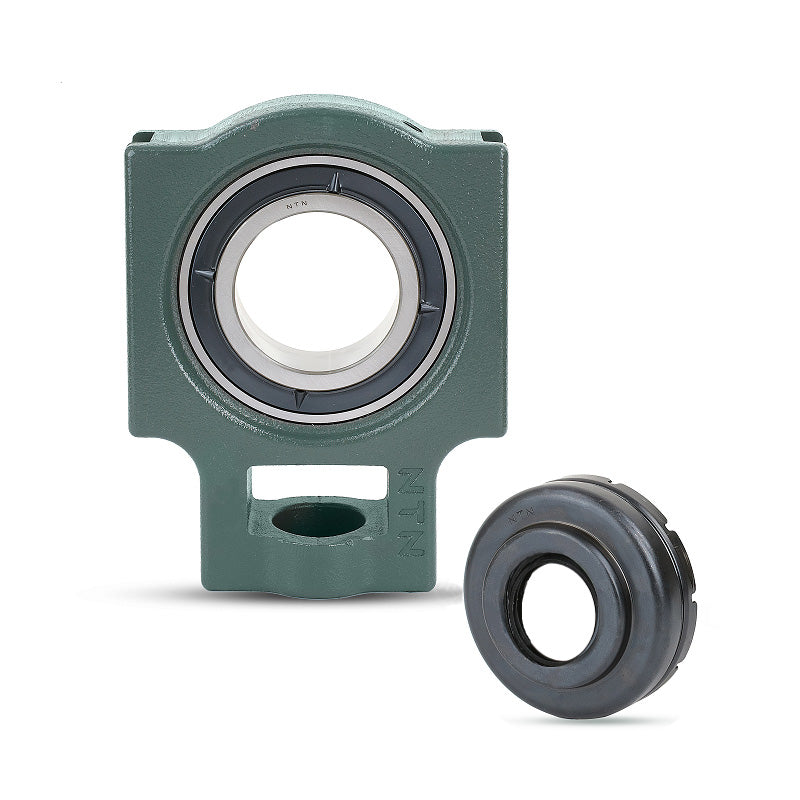

NTN S-UKT213AD1/HA2313 Imperial Cast Iron Take Up Unit with Steel Plate Cover - Open Version - Insert and Adaptor Sleeve Fits 2-3/16 inch Shaft - Allow 2-3 Days
NTN S-UKT213AD1/HA2313 Imperial Cast Iron Take Up Unit with Steel Plate Cover - Open Version - Insert and Adaptor Sleeve Fits 2-3/16 inch Shaft - Allow 2-3 Days
Out of stock
Description
Description
UKT200 Series Normal Duty Take Up Units with Adaptor Sleeve Mounted: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, with adaptor
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 55.56mm = 2.187 (2-3/16) inch
- Style:
- UKT
Technical
Technical
| Shaft diameter | 2-3/16 inch |
|---|---|
| N<sub>1</sub> | 1-1/4 inch |
| L<sub>2</sub> | 29/32 inch |
| H<sub>2</sub> | 4-3/8 inch |
| N<sub>2</sub> | 2-3/4 inch |
| N | 1-5/8 inch |
| L<sub>3</sub> | 4-3/4 inch |
| A<sub>1</sub> | 1.024 inch |
| H<sub>1</sub> | 5-15/16 inch |
| H | 6-9/16 inch |
| L | 8-13/16 inch |
| A<sub>2</sub> | 1-23/32 inch |
| A | 2-3/4 inch |
| r | 3-7/16 inch |
| L<sub>1</sub> | 5-13/32 inch |
| B<sub>1</sub> | 2.559 inch |
| A<sub>4</sub> | 4-7/32 inch |
| Mass | 16 lbs |
