SKU: S-UCTX10-115D1-NTN

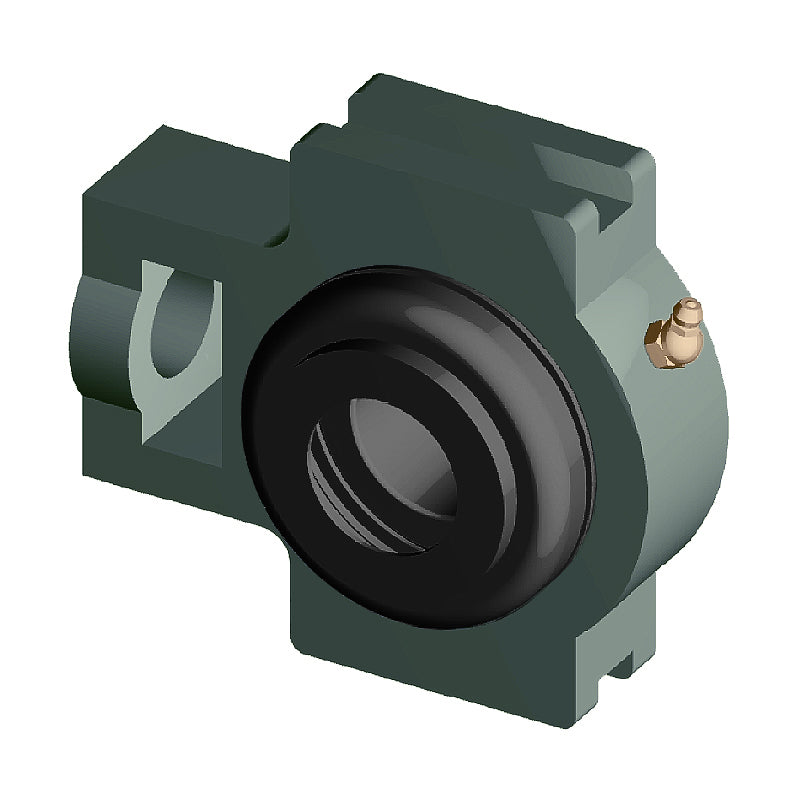

NTN S-UCTX10-115D1 Imperial Cast Iron Take Up Unit with 1-15/16 inch Bore Bearing Unit with Steel Plate Cover - Open Version - Allow 2-3 Days
NTN S-UCTX10-115D1 Imperial Cast Iron Take Up Unit with 1-15/16 inch Bore Bearing Unit with Steel Plate Cover - Open Version - Allow 2-3 Days
Out of stock
Share this product
Description
Description
UCTX Series Medium Duty Take Up Units: These medium-duty bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 49.21mm = 1.937 (1-15/16) inch
- Style:
- UCTX
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 1-15/16 inch |
| N<sub>1</sub> | 31/32 inch |
| L<sub>2</sub> | 13/16 inch |
| H<sub>2</sub> | 4-1/32 inch |
| N<sub>2</sub> | 2-17/32 inch |
| N | 1-3/8 inch |
| L<sub>3</sub> | 3-3/4 inch |
| A<sub>1</sub> | 0.866 inch |
| H<sub>1</sub> | 5-1/8 inch |
| H | 5-3/4 inch |
| L | 6-23/32 inch |
| A<sub>2</sub> | 1-21/32 inch |
| A | 2-17/32 inch |
| r | 2-9/16 inch |
| L<sub>1</sub> | 4-3/16 inch |
| B | 2.189 inch |
| S | 0.874 inch |
| A<sub>4</sub> | 3-5/8 inch |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 48 kN |
| Static load C<sub>0r</sub> | 29.2 kN |
| Fatigue load limit C<sub>u</sub> | 2.29 kN |
| --- | Unit information |
| Mass | 10 lbs |
