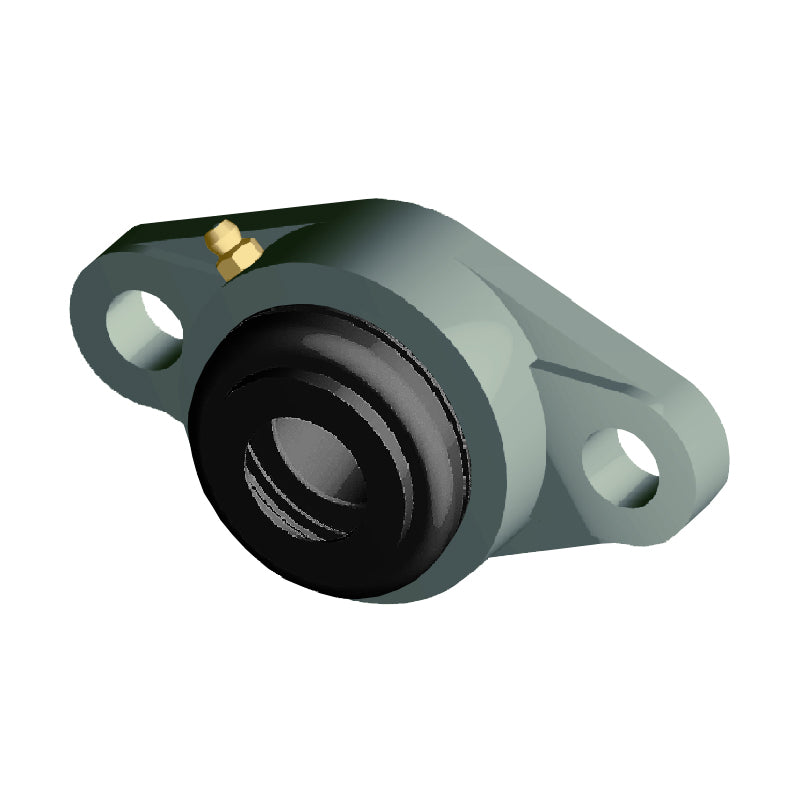

NTN S-UCFLX10-200D1 Imperial Two Bolt Oval Cast Iron Flange Housing with 2 inch Bore Insert with Steel Plate Cover - Open Version - Allow 2-3 Days
NTN S-UCFLX10-200D1 Imperial Two Bolt Oval Cast Iron Flange Housing with 2 inch Bore Insert with Steel Plate Cover - Open Version - Allow 2-3 Days
Out of stock
Description
Description
|
UCFLX or MSFT Series Medium Duty 2 Bolt Oval Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted.
The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 50.8mm = 2 Inch
- Style:
- UCFLX
- Bolt Hole Centres:
- 7-1/4 inch
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 2 inch |
| H | 8-1/2 inch |
| J | 7-1/4 inch |
| A<sub>2</sub> | 1-1/32 inch |
| A<sub>1</sub> | 23/32 inch |
| A | 1-23/32 inch |
| N | 3/4 inch |
| L | 5-1/4 inch |
| B | 0.2189 inch |
| S | 0.874 inch |
| A<sub>4</sub> | 2-25/32 inch |
| Fixing bolt | 5/8 inch |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 48 kN |
| Static load C<sub>0r</sub> | 29.2 kN |
| Fatigue load limit C<sub>u</sub> | 2.29 kN |
| --- | Unit information |
| Mass | 7.1 lbs |
