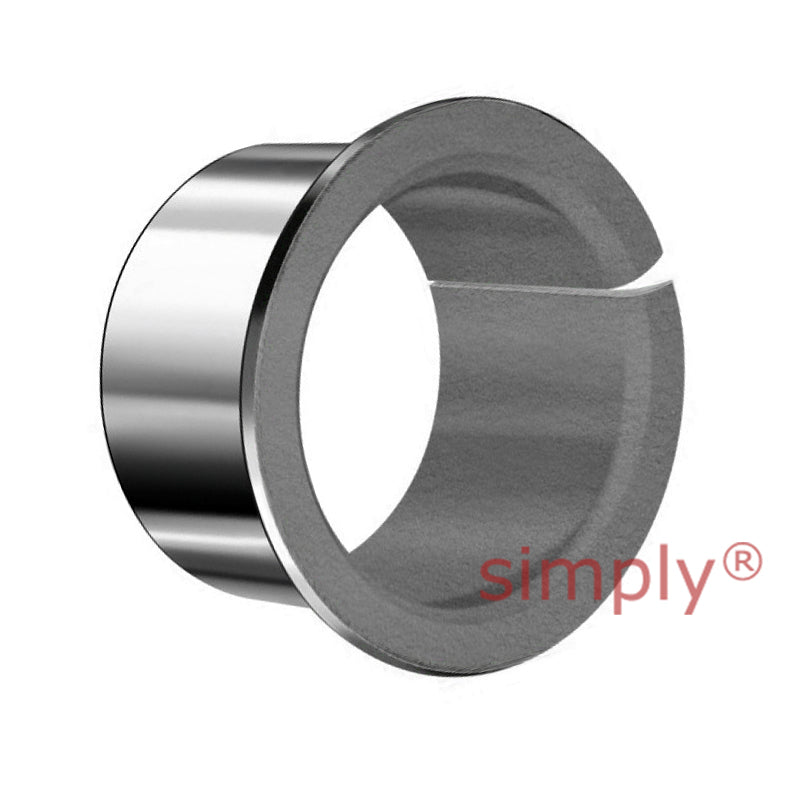

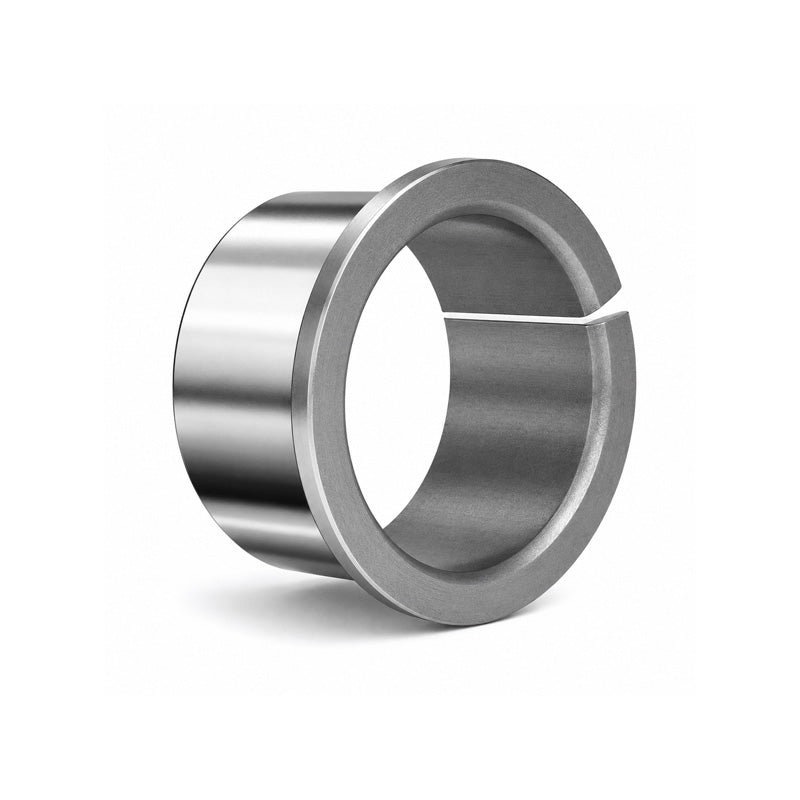

SKF PCMF161817E Metric Flanged Bush 16x18x17mm

SKU: PCMF161817E-SKF

SKF PCMF161817E Metric Flanged Bush 16x18x17mm

CHF 4.00 ex VAT
CHF 4.00
ex VAT
In stock

Quantity Price Breaks

9 CHF 3.56
19 CHF 3.36
29 CHF 3.32
39 CHF 3.28
49 CHF 3.24
69 CHF 3.20
99 CHF 3.00
199 CHF 2.96
249 CHF 2.92
499 CHF 2.88
999 CHF 2.80
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
SKF PCMF161817E Metric Flanged Bush 16x18x17mm
SKU: PCMF161817E-SKF

SKF PCMF161817E Metric Flanged Bush 16x18x17mm

CHF 4.00 ex VAT
CHF 4.00
ex VAT

Description

PCMF Ball Bushing: Plain bushings with a flange on one side, made of triple-layer PTFE composite material. Suitable for bearing arrangements that have to accommodate radial as well as axial loads. For slow rotational or oscillating movements. Initial lubrication not required. Maintenance-free.
PTFE E composite: PTFE composite bearings consist of a copperplated sheet steel backing on which a 0,2 to 0,4 mm (0.008 to 0.015 inch) thick porous layer of tin/bronze is sintered. By a rolling process, the pores of the sintered layer are filled with a mixture of PTFE (polytetrafluoroethylene) and molybdenum disulphide. An additional 5 to 30 mm thick running-in layer of the mixture is then applied to the sintered tin/bronze. This additional layer provides an optimum combination of the mechanical properties of the sintered tin/bronze and the good sliding and lubricating properties of the PTFE mixture. PTFE composite bearings have good dimensional stability and thermal conductivity.
