SKU: NUP2305-EU

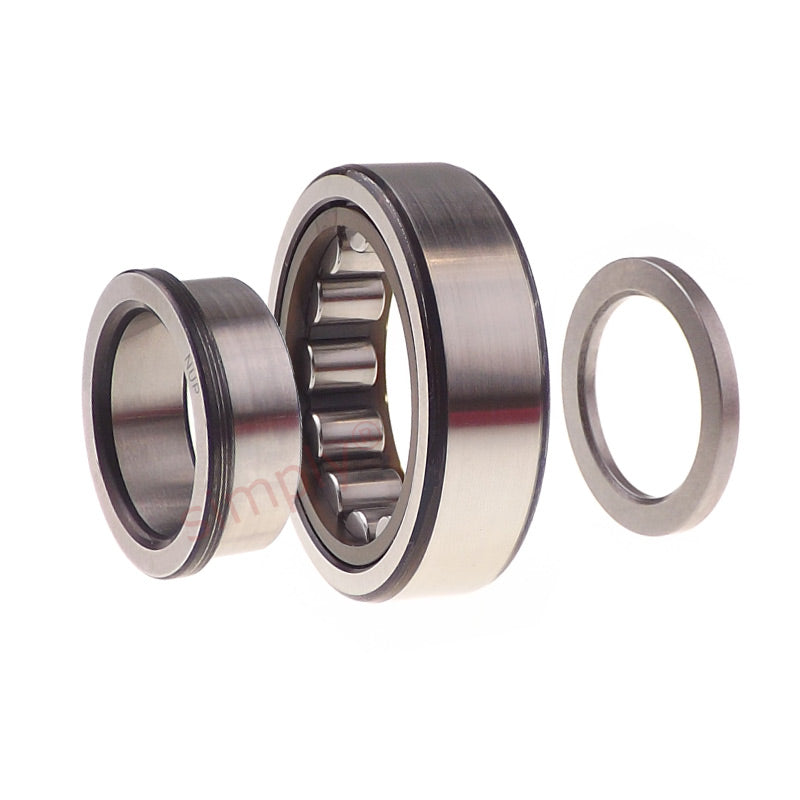

NUP2305 Budget Single Row Cylindrical Roller Bearing 25x62x24mm
- Regular price
- CHF 48.00 ex VAT
- Sale price
- CHF 48.00
- Regular price
-
ex VAT
Not in stock
Quantity Price Breaks
10
CHF 42.72
19
CHF 40.32
29
CHF 39.84
39
CHF 39.36
49
CHF 38.88
74
CHF 38.40
99
CHF 36.00
199
CHF 35.52
249
CHF 35.04
499
CHF 34.56
999
CHF 33.60
Description
|
NUP Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the rollers are assembled, the inner raceway has one flange, the supplied none integral ring forms the other flange, enabling the ease of assembly and permitting axial location in both directions. Benefits: Axial location, ease of assembly and fitting |
Technical
| d | = | 25mm |
| D | = | 62mm |
| B | = | 24mm |
| Dynamic load C | = | 64 kN |
| Static load Co | = | 55 kN |
| Fatigue load limit Pu | = | 6.95 kN |
| Reference speed | = | 12000 rpm |
| Limiting speed | = | 15000 rpm |
| Weight | = | 0.36 kg |
| Cage options | = | ML |
| d1 | = | 38.1mm |
| D1 | = | 50.7mm |
| F, E | = | 34mm |
| r1r2 min | = | 1.1mm |
| r3r4 min | = | 1.1mm |
| da min | = | 32mm |
| db min | = | 40mm |
| Da max | = | 55mm |
| ra max | = | 1mm |
| rb max | = | 1mm |
| kr | = | 0.25 |
