SKU: NU1096MA-EU

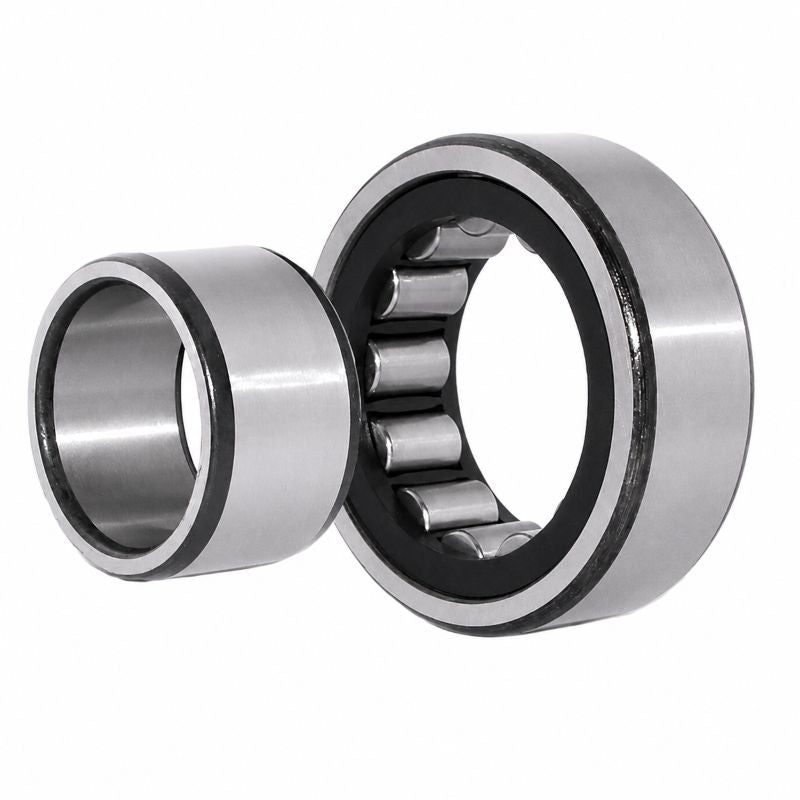

NU1096 Budget Single Row Cylindrical Roller Bearing 480x700x100mm
NU1096 Budget Single Row Cylindrical Roller Bearing 480x700x100mm
Out of stock
Description
Description
|
NU Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has no flanges permitting the ease of assembly and allowing axial movement in either direction. Benefits: Axial displacement tolerant, ease of assembly and fitting |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 480mm
- Outside Diameter:
- 700mm
- Width:
- 100mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 480mm |
|---|---|
| D | 700mm |
| B | 100mm |
| Dynamic load C | 1680 kN |
| Static load Co | 3000 kN |
| Fatigue load limit Pu | 232 kN |
| Reference speed | 900 rpm |
| Limiting speed | 1200 rpm |
| Weight | 130 kg |
| d1 | 557mm |
| D1 | 620mm |
| F, E | 536mm |
| r1r2 min | 6mm |
| r3r4 min | 6mm |
| s | 15.9mm |
| da min | 503mm |
| da max | 531mm |
| db min | 541mm |
| Da max | 677mm |
| ra max | 5mm |
| rb max | 5mm |
| kr | 0.1 |
| Angle ring | HJ1096 |
| Angle ring weight | 14.5kg |
| B1 | 25mm |
| B2 | 48mm |
