SKU: NKI32/20-EU
NKI32/20 Budget Needle Roller Bearing / Shaft Sleeve 32x47x20mm
NKI32/20 Budget Needle Roller Bearing / Shaft Sleeve 32x47x20mm
Regular price
CHF 10.00
ex VAT
Regular price
Sale price
CHF 10.00
ex VAT
In stock
Price Break
10+
CHF 7.41
19+
CHF 7.00
29+
CHF 6.91
39+
CHF 6.83
49+
CHF 6.75
74+
CHF 6.66
99+
CHF 6.25
199+
CHF 6.16
249+
CHF 6.08
499+
CHF 6.00
999+
CHF 5.83
Description
Description
|
Budget Needle Roller Bearing and Shaft Sleeve: A machined needle roller bearing with retaining flanges in the outer ring to retain the rollers, comes supplied with a shaft sleeve. Benefits: Ease of mounting, inner ring supplied, larger bearings have annular lubrication groove |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 32mm
- Outside Diameter:
- 47mm
- Width:
- 20mm

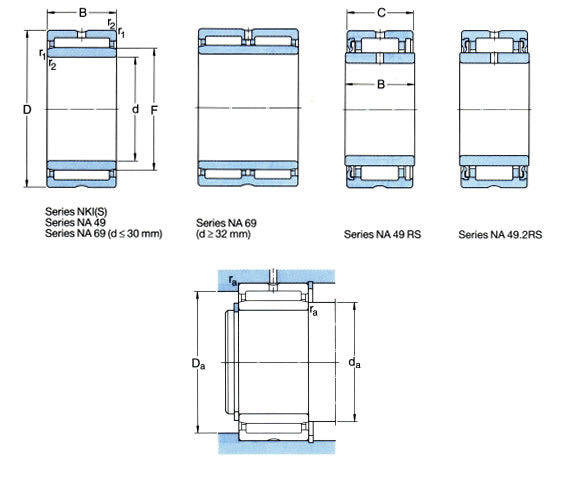

Technical
Technical
| d | 32mm |
|---|---|
| D | 47mm |
| B | 20mm |
| Dynamic load C | 25100 N |
| Static load Co | 46500 N |
| Fatigue load limit Pu | 5850 N |
| Speed in grease | 7500 rpm |
| Speed in oil | 11000 rpm |
| F | 37mm |
| r1r2 | 0.3mm |
| S (axial disp) | 0.5mm |
| da min | 34mm |
| Da max | 45mm |
| ra max | 0.3mm |
