SKU: NK73/35-EU
NK73/35 Budget Needle Roller Bearing with Flanges no Shaft Sleeve 73x90x35mm
- Regular price
- CHF 61.00 ex VAT
- Sale price
- CHF 61.00
- Regular price
-
Not in stock
Quantity Price Breaks
10
CHF 54.29
19
CHF 51.24
29
CHF 50.63
39
CHF 50.02
49
CHF 49.41
74
CHF 48.80
99
CHF 45.75
199
CHF 45.14
249
CHF 44.53
499
CHF 43.92
999
CHF 42.70
SKU:
NK73/35-EU
NK73/35 Budget Needle Roller Bearing with Flanges no Shaft Sleeve 73x90x35mm
- Regular price
- CHF 61.00 ex VAT
- Sale price
- CHF 61.00
- Regular price
-
Description
|
Budget Machined Type Needle Roller with Flanges: Supplied without the inner ring for instances where a mating bearing surface already exists or an inner ring is to be used & has the benefit of flanges in the outer race to compensate for small misalignments and small side loads. Benefits: Economical replacement, needles are retained within machined flange of the outer race. |

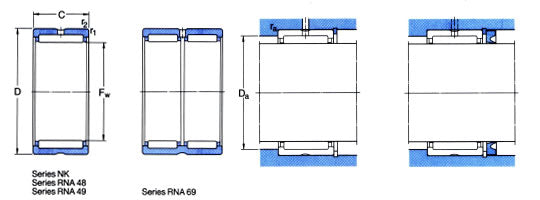

Technical
| Fw | = | 73mm |
| D | = | 90mm |
| C | = | 35mm |
| Dynamic load C | = | 73700 N |
| Static load Co | = | 163000 N |
| Fatigue load limit Pu | = | 21600 N |
| Speed in grease | = | 4000 rpm |
| Speed in oil | = | 5600 rpm |
| r1r2 | = | 1mm |
| Da max | = | 85mm |
| ra max | = | 1mm |
| Weight | = | 430 g |
