SKU: NJ2238-E-M1-C3+HJ2238-E

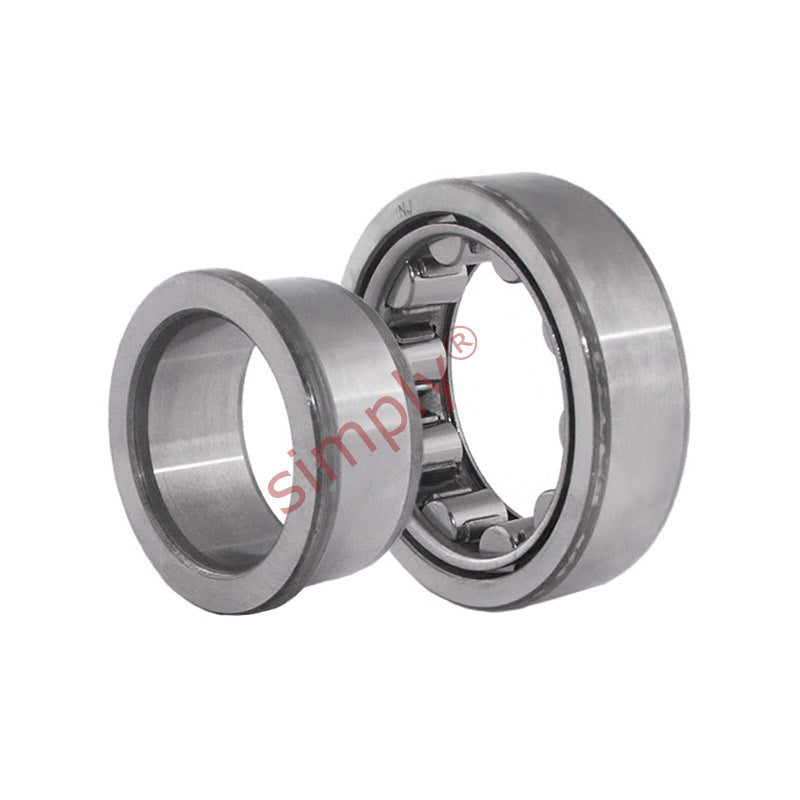

NJ2238-E-M1-C3 + HJ2238-E Cylindrical Roller Bearing with Cage and L-section Ring 190x340x92mm
NJ2238-E-M1-C3 + HJ2238-E Cylindrical Roller Bearing with Cage and L-section Ring 190x340x92mm
Out of stock
Description
Description
|
NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 190mm
- Outside Diameter:
- 340mm
- Width:
- 92mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| d | 190 |
|---|---|
| D | 340 |
| B | 92 |
| r min | 4 |
| r1 min | 4 |
| E | 308 |
| F | 228 |
| D1 | 296.4 |
| d1 | 242.7 |
| B1 | 13 |
| B2 | 26.5 |
| da min | 207 |
| dc min | 247 |
| Da max | 323 |
| ra max | 3 |
| Dynamic load | 1100000 N |
| Static load | 1660000 N |
| Fatigue limit load | 184000 N |
| Limiting speed | 3000 rpm |
| Reference speed | 1300 rpm |
| L-section ring | HJ2238-E |
| Bearing weight | 37.7 kg |
| L-section ring weight | 2.31 kg |
