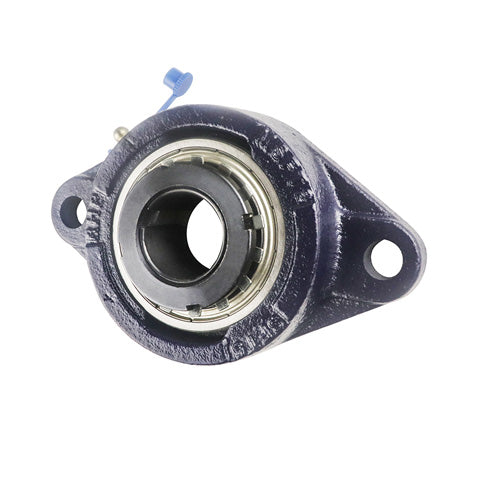

RHP MSFT1035-1-1/8K Two Bolt Oval Cast Iron Flange Housing 1-1/8 inch Bore Insert
RHP MSFT1035-1-1/8K Two Bolt Oval Cast Iron Flange Housing 1-1/8 inch Bore Insert
Out of stock
Share this product
Description
Description
|
RHP MSFT Series Heavy Duty 2 Bolt Oval Cast Iron Housings: Bearing units supplied with a full width sealed heavy duty bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing has a taper bore to accommodate the taper sleeve which is tightened using a lock nut to secure to the shaft after installation, the locknut is subsequently secured with the tab washer. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 28.58mm = 1.125 (1-1/8) inch
- Style:
- MSFT
- Bolt Hole Centres:
- 129.997mm = 5.118 inch
Technical
Technical
| Bore | 1-1/8 inch |
|---|---|
| L | 3.76 inch |
| H | 6.122 inch |
| J | 5.118 inch |
| G | 0.5 inch |
| A | 1.236 inch |
| A4 | 0.5 inch |
| A5 | 1.594 inch |
| B5 | 1.378 inch |
| s | - inch |
| d4 | 2.047 inch |
| Dynamic load | 25700 N |
| Static load | 15300 N |
| Rec max speed | 4500 rpm |
| Weight | 1.4 kg |
| Insert | <a href="advanced_search_result.php?keywords=1035K+insonly">1035K Click Here</a> |
| Casting group | 2 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
