SKU: M-UCFA208-109D1-NTN

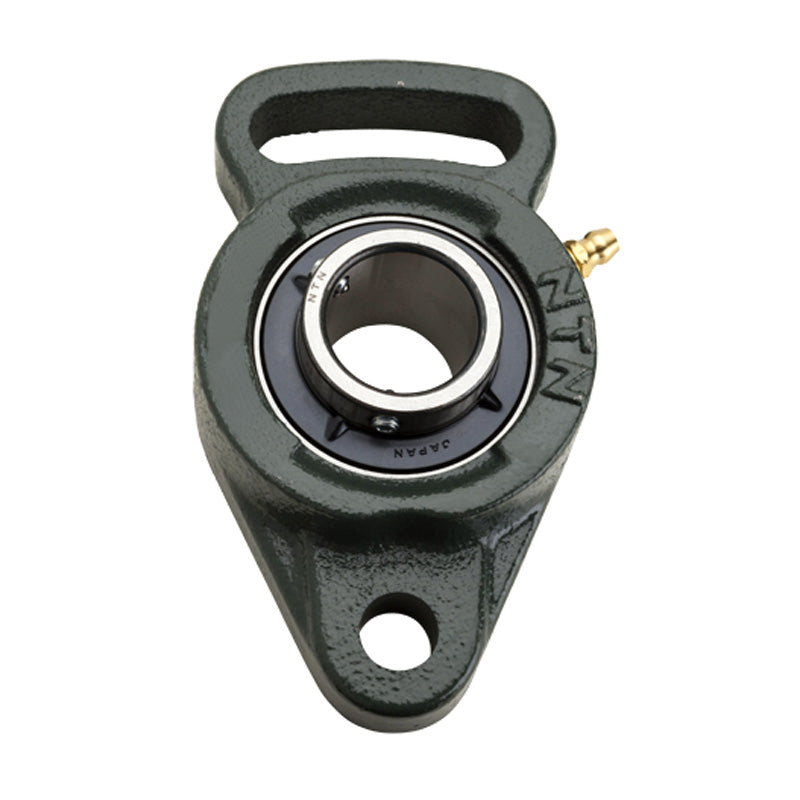

NTN M-UCFA208-109D1 Imperial Cast Iron Adjustable Flange Unit with 1-9/16 inch Insert - Allow 2-3 Days
NTN M-UCFA208-109D1 Imperial Cast Iron Adjustable Flange Unit with 1-9/16 inch Insert - Allow 2-3 Days
Out of stock
Description
Description
UCFA200 Series Normal Duty Adjustable Flange Units: These bearing units are supplied with a fully sealed bearing insert fitted in the adjustable flange housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 39.69mm = 1.563 (1-9/16) inch
- Style:
- UCFA
- Bolt Hole Centres:
- 5-19/32 inch
Technical
Technical
| Shaft diameter | 1-9/16 inch |
|---|---|
| H | 6-23/32 inch |
| J | 5-19/32 inch |
| A<sub>2</sub> | 55/64 inch |
| A<sub>1</sub> | 5/8 inch |
| A | 1-13/32 inch |
| N | 19/32 inch |
| N<sub>1</sub> | 2-23/32 inch |
| L | 3-15/16 inch |
| L<sub>1</sub> | 3-5/16 inch |
| A<sub>0</sub> | 2-1/16 inch |
| B | 1.937 inch |
| S | 0.748 inch |
| Fixing bolt | 7/16 inch |
| Mass | 3.3 lbs |
