SKU: M-ASPP204-012-NTN

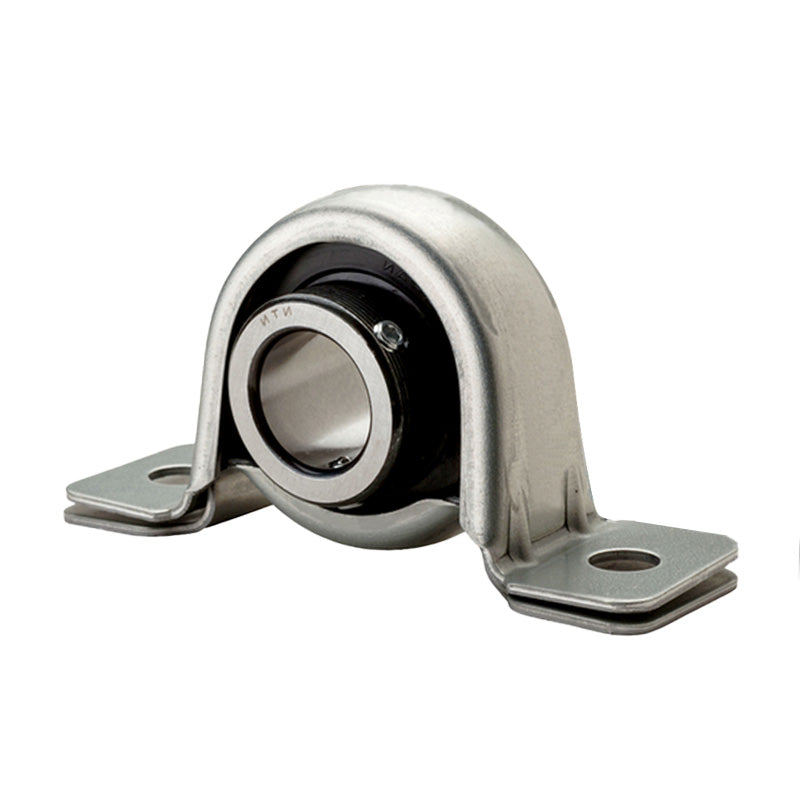

NTN M-ASPP204-012 Imperial Pressed Steel Two Bolt Plummer Block Housing with 3/4 inch Insert - Allow 2-3 Days
NTN M-ASPP204-012 Imperial Pressed Steel Two Bolt Plummer Block Housing with 3/4 inch Insert - Allow 2-3 Days
Out of stock
Description
Description
|
ASPP200 Series 2 Bolt Pressed Steel Pillow Block Housings: Of galvanized steel construction these housings are a simple economical housed bearing solution. Designed for light to medium duty applications they can be bolted to sheet metal frameworks or even timber if required. The supplied sealed bearing insert has a collar and grub screws for securing the insert to the shaft. Once assembled the bearing remains rigid in the housing. The inserts are also available separately. Benefits: Cost-effective bearing/housing assembly, replaceable insert, collar & grub screw fixing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 19.05mm = 0.75 (3/4) inch
- Style:
- ASPP
- Bolt Hole Centres:
- 3 inch
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 3/4 inch |
| H | 1 inch |
| L | 3-27/32 inch |
| J | 3 inch |
| A | 1-1/4 inch |
| N | 3/8 inch |
| H<sub>1</sub> | 0.126 inch |
| H<sub>2</sub> | 2 inch |
| B | 0.9843 inch |
| S | 0.276 inch |
| Fixing bolt | 5/16 inch |
| --- | Load rating |
| Max load recommended radial | 550 lbf |
| Max load recommended axial | 200 lbf |
| --- | Unit information |
| Mass | 0.4 lbs |
