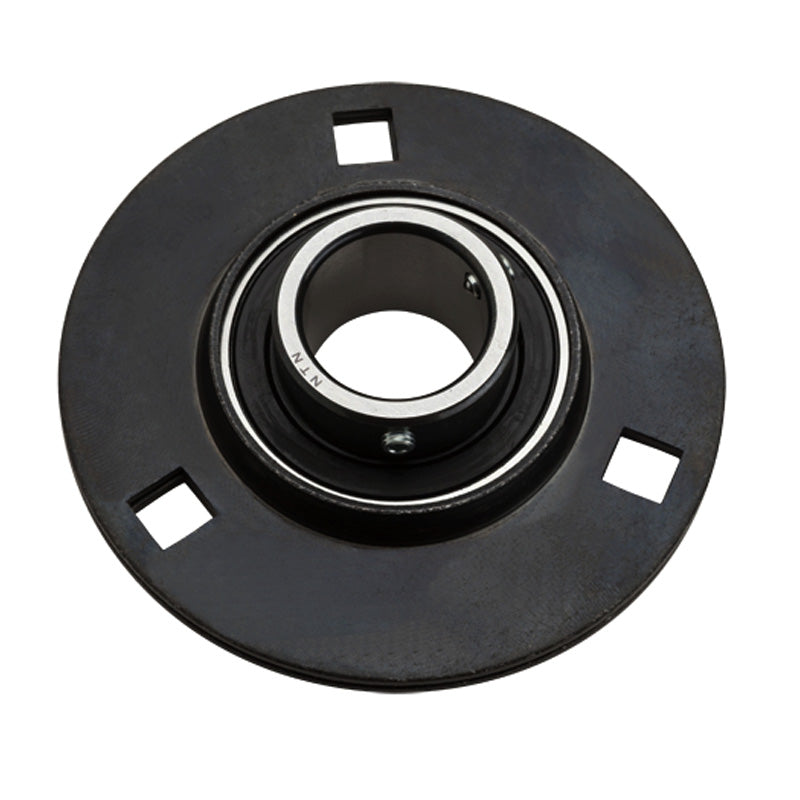

NTN M-AELPF203-011 Round 3 Bolt Pressed Steel Bearing Housing with 11/16 inch Eccentric Collar Insert - Allow 2-3 Days
NTN M-AELPF203-011 Round 3 Bolt Pressed Steel Bearing Housing with 11/16 inch Eccentric Collar Insert - Allow 2-3 Days
Out of stock
Description
Description
|
3 Bolt Round Pressed Steel Bearing Housings: Of galvanized steel construction these housings are a simple economical housed bearing solution. Designed for light to medium duty applications they can be bolted to sheet metal frameworks or even timber if required. The supplied sealed bearing insert has an eccentric collar and grub screws for securing to the shaft. Once assembled the bearing remains rigid in the housing. The inserts are also available separately. Benefits: Cost effective bearing / housing assembly, replaceable insert, collar & grub screw fixing Note: Bearing units of 40mm / 1-1/2 or larger have 4 bolt holes |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 17.46mm = 0.687 (11/16) inch
- Style:
- AELPF
- Pitch Circle Diameter:
- 2-1/2 inch
Technical
Technical

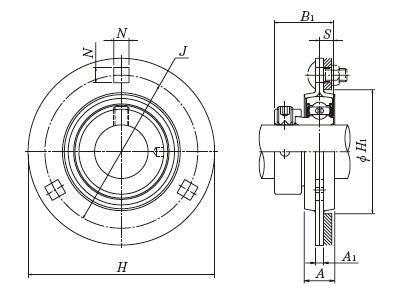

| --- | Dimensions |
|---|---|
| Shaft diameter | 11/16 inch |
| H | 3-3/16 inch |
| J | 2-1/2 inch |
| A<sub>1</sub> | 0.157 inch |
| N | 9/32 inch |
| A | 9/16 inch |
| B<sub>1</sub> | 1.126 inch |
| S | 0.256 inch |
| H<sub>1</sub> min | 1-59/64 inch |
| Fixing bolt | 1/4 inch |
| --- | Load rating |
| Max load recommended radial | 600 lbf |
| Max load recommended axial | 300 lbf |
| --- | Unit information |
| Mass | 0.7 lbs |
