SKU: L100B-MB

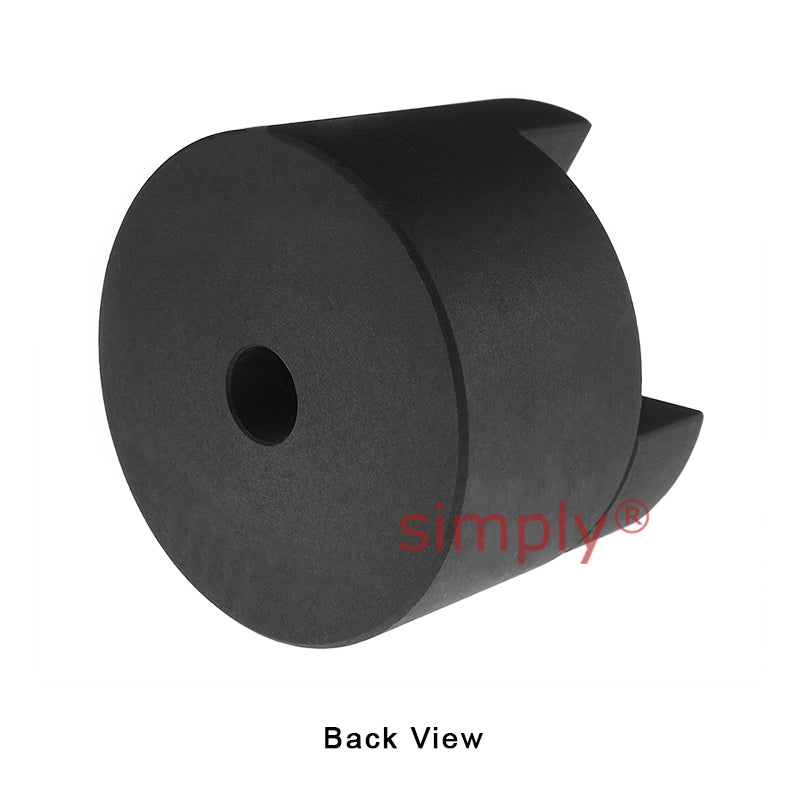

Major Branded L100B Pilot Bored Jaw Coupling Max Bore 35mm
- Regular price
- CHF 12.00 ex VAT
- Sale price
- CHF 12.00
- Regular price
-
Quantity Price Breaks
Major Branded L100B Pilot Bored Jaw Coupling Max Bore 35mm
- Regular price
- CHF 12.00 ex VAT
- Sale price
- CHF 12.00
- Regular price
-
Description
Branded Jaw Coupling Pilot Bore: The advantage of having a pilot bore means you can machine it to the size required (max bore permitted). They are suitable for general purpose applications that cater for misalignment, shock loads and damps out small amplitude vibrations.

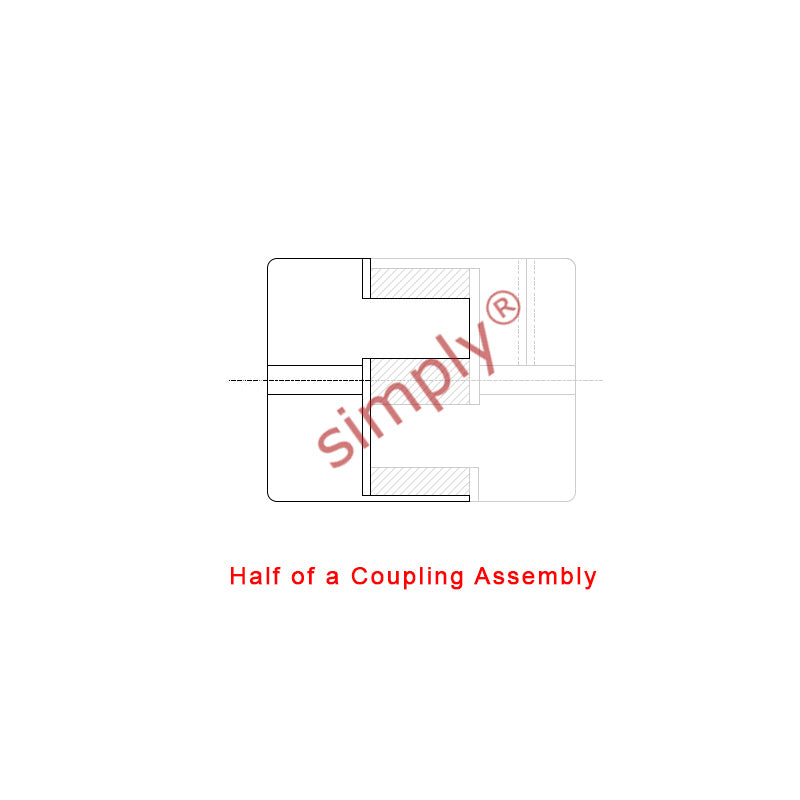

This is a half coupling. You require 2 x flanges and 1 x insert to create a full coupling. Links below to flanges or full assemblies.
In most cases we are able to arrange for Pilot Bore Type Couplings to be machined to suit your specific size requirements. Prices and availability can be obtained by contacting our Sales Support team by
clicking here and we will happily quote you on this.

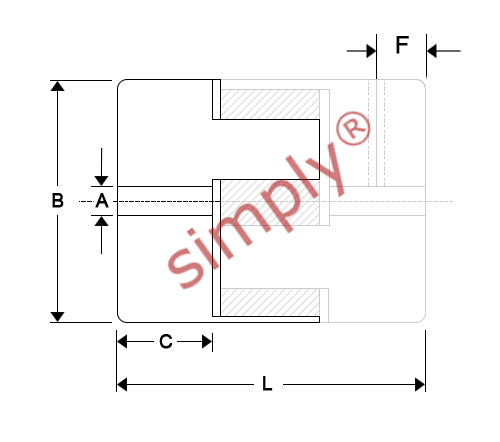

Technical
| Nominal torque | = | 55.4 Nm |
| A Max | = | 12mm |
| Max Bore A | = | 35mm |
| Overall Diameter B | = | 65mm |
| Assembled Length L | = | 89mm |
| Hub Width C | = | 35mm |
| Hub Diameter D | = | 65mm |
| F | = | 12.5mm |
| Grub Screw Size | = | M8 |
| Complete Weight | = | 0.87kg |
