SKU: KV55X60X30S-NTN
NTN KV55X60X30S Needle Roller and Cage Assembly for Connecting Rod 55x60x30mm - Allow 2-3 Days
NTN KV55X60X30S Needle Roller and Cage Assembly for Connecting Rod 55x60x30mm - Allow 2-3 Days
Out of stock
Share this product
Description
Description
Needle Roller and Cage Assemblies: A ready-to-mount, self-contained bearing component designed for compact and efficient performance. These assemblies provide high load capacity and stiffness while requiring minimal radial space, as the shaft and housing can act as raceways. Their precise design ensures smooth operation and reliable running accuracy.
Benefits: Cost-effective, minimal radial space requirements, high running accuracy.
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 55mm
- Outside Diameter:
- 60mm
- Width:
- 30mm
Technical
Technical

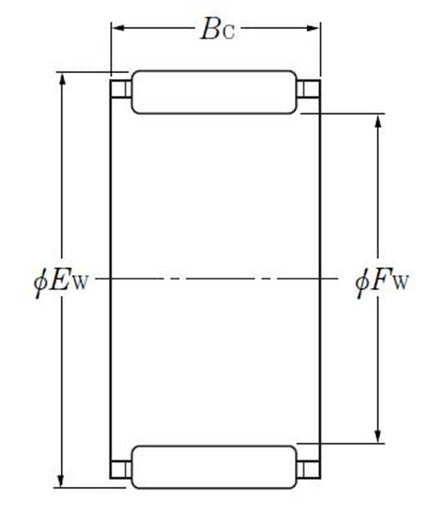

| Fw - Inside diameter | 55mm |
|---|---|
| Ew - Outside diameter | 60mm |
| Bc - Cage width | 30mm |
| Cr - Dynamic load rating | 42 kN |
| C0r - Static load rating | 108 kN |
| N - Grease lubrication limit speed | 5000 tr/min |
| N - Oil lubrication limit speed | 7500 tr/min |
| Tmin - Minimum operating temperature | -20 Deg C |
| Tmax - Maximum operating temperature | +120 Deg C |
