SKU: KRE90PPA-EU
Budget KRE90PPA Contact Sealed Crowned Cam Follower with Eccentric Stud 90x35x35 M30x1.5 Thread
- Regular price
- CHF 228.00 ex VAT
- Sale price
- CHF 228.00
- Regular price
-
Not in stock
Quantity Price Breaks
10
CHF 202.92
19
CHF 191.52
29
CHF 189.24
39
CHF 186.96
49
CHF 184.68
74
CHF 182.40
99
CHF 171.00
199
CHF 168.72
249
CHF 166.44
499
CHF 164.16
999
CHF 159.60
SKU:
KRE90PPA-EU
Budget KRE90PPA Contact Sealed Crowned Cam Follower with Eccentric Stud 90x35x35 M30x1.5 Thread
- Regular price
- CHF 228.00 ex VAT
- Sale price
- CHF 228.00
- Regular price
-
Description
KRE-PP Series Crowned Cam Followers: Manufactured with needle rollers permitting a thick outer ring allowing for heavy loads and shock to be supported, axial guidance is provided by a flange on the stud side and a pressed on-side washer. These cam followers are supplied with contact seals on both sides.
Benefits: High load, shock resistant, contact sealed on both sides.

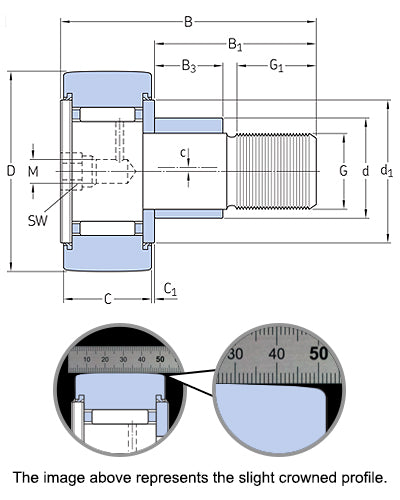

Technical
| D | = | 90mm |
| C | = | 35mm |
| d (Stud Diameter) | = | 35mm |
| B | = | 100mm |
| B1 | = | 63mm |
| C1 | = | 1mm |
| d1 | = | 53mm |
| G | = | M30x1.5 |
| G1 | = | 32mm |
| r min | = | 1.1mm |
| SW | = | 14mm |
| Eccentric stud c | = | 1.5mm |
| B3 | = | 29mm |
| Dynamic load | = | 38000 N |
| Static load | = | 76500 N |
| Fatigue load limit Pu | = | 9500 N |
| Radial dynamic load | = | 160000 N |
| Radial static load | = | 228000 N |
| Speed rating | = | 1300 rpm |
| Weight | = | 2030 g |
