SKU: KR40PP-EU
Budget KR40PP Contact Sealed Crowned Cam Follower 40x20x18 M18x1.5 Thread
- Regular price
- CHF 17.00 ex VAT
- Sale price
- CHF 17.00
- Regular price
-
In stock
Quantity Price Breaks
10
CHF 15.13
19
CHF 14.28
29
CHF 14.11
39
CHF 13.94
49
CHF 13.77
74
CHF 13.60
99
CHF 12.75
199
CHF 12.58
249
CHF 12.41
499
CHF 12.24
999
CHF 11.90
SKU:
KR40PP-EU
Budget KR40PP Contact Sealed Crowned Cam Follower 40x20x18 M18x1.5 Thread
- Regular price
- CHF 17.00 ex VAT
- Sale price
- CHF 17.00
- Regular price
-
Description
KR-PP Series Crowned Cam Followers: Manufactured with needle rollers permitting a thick outer ring allowing for heavy loads and shock to be supported, axial guidance is provided by a flange on the stud side and a pressed on side washer. These cam followers are supplied with contact seals on both sides. |

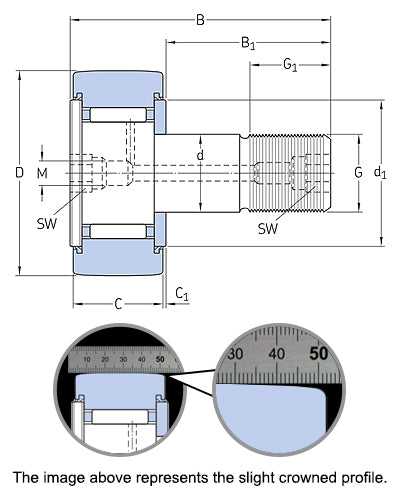

Technical
| D | = | 40mm |
| C | = | 20mm |
| d (Stud Diameter) | = | 18mm |
| B | = | 58mm |
| B1 | = | 36.5mm |
| B2 | = | 8mm |
| C1 | = | 0.8mm |
| d1 | = | 32mm |
| G | = | M18x1.5 |
| G1 | = | 19mm |
| M | = | 6mm |
| M1 | = | 3mm |
| r min | = | 1mm |
| Dynamic load | = | 10500 N |
| Static load | = | 14600 N |
| Fatigue load limit Pu | = | 1730 N |
| Radial dynamic load | = | 12500 N |
| Radial static load | = | 18000 N |
| Speed rating | = | 2900 rpm |
| Weight | = | 250 g |
