SKU: KR22-EU
Budget KR22 Crowned Cam Follower 22x12x10 M10x1 Thread
- Regular price
- CHF 24.00 ex VAT
- Sale price
- CHF 24.00
- Regular price
-
In stock
Quantity Price Breaks
10
CHF 21.36
19
CHF 20.16
29
CHF 19.92
39
CHF 19.68
49
CHF 19.44
74
CHF 19.20
99
CHF 18.00
199
CHF 17.76
249
CHF 17.52
499
CHF 17.28
999
CHF 16.80
SKU:
KR22-EU
Budget KR22 Crowned Cam Follower 22x12x10 M10x1 Thread
- Regular price
- CHF 24.00 ex VAT
- Sale price
- CHF 24.00
- Regular price
-
Description
KR Series Crowned Cam Followers: Manufactured with needle rollers permitting a thick outer ring allowing for heavy loads and shock to be supported, axial guidance is provided by a flange on the stud side and a pressed on side washer. |

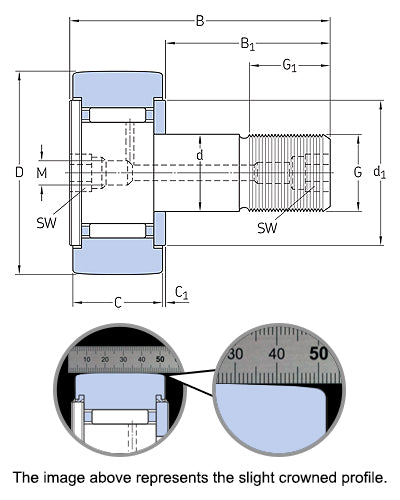

Technical
| D | = | 22mm |
| C | = | 12mm |
| d (Stud Diameter) | = | 10mm |
| B | = | 36mm |
| B1 | = | 23mm |
| C1 | = | 0.6mm |
| d1 | = | 17mm |
| G | = | M10x1 |
| G1 | = | 12mm |
| M | = | 4mm |
| r min | = | 0.3mm |
| Dynamic load | = | 4400 N |
| Static load | = | 5000 N |
| Fatigue load limit Pu | = | 560 N |
| Radial dynamic load | = | 4250 N |
| Radial static load | = | 6000 N |
| Speed rating | = | 8000 rpm |
| Weight | = | 44 g |
