SKU: KB25-INA

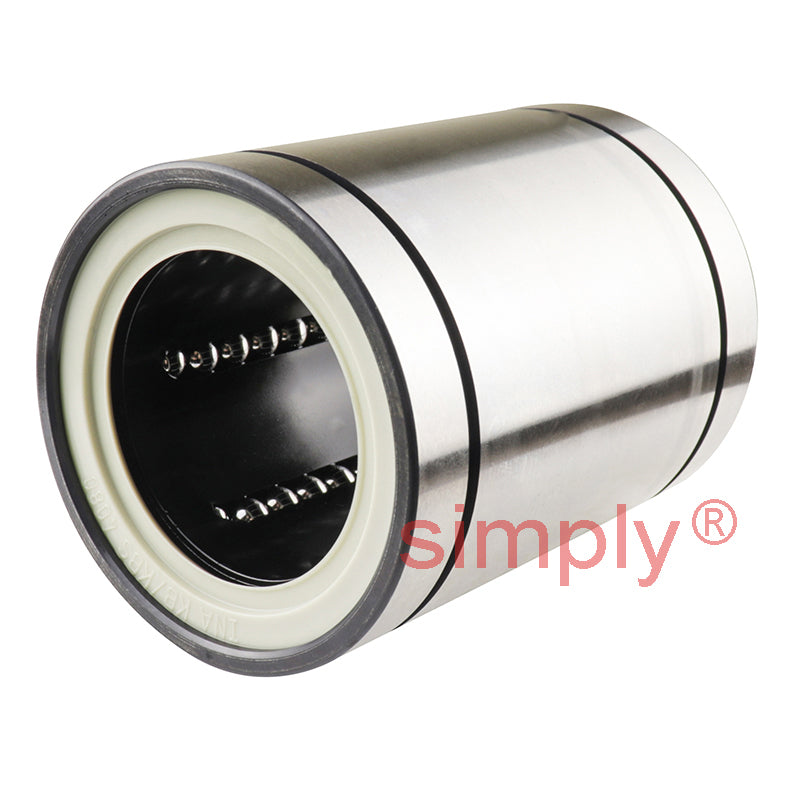

INA KB25 Closed Linear Ball Bushing with Gap Seals 25x40x58mm
INA KB25 Closed Linear Ball Bushing with Gap Seals 25x40x58mm
Regular price
CHF 88.00
ex VAT
Regular price
Sale price
CHF 88.00
ex VAT
In stock
Price Break
3+
CHF 69.77
5+
CHF 65.85
10+
CHF 65.06
15+
CHF 64.28
20+
CHF 63.50
30+
CHF 62.71
40+
CHF 58.79
50+
CHF 58.01
60+
CHF 57.22
75+
CHF 56.44
100+
CHF 54.87
Description
Description
|
INA KB Linear Ball Bearings: Linear ball bearings of the machined range KB and the corresponding linear ball bearing and housing units have high precision and are particularly rigid. These bearings are of a closed construction and are designed for use on shafts. The bearings are sealed on both sides with gap seals. They have an initial greasing and can be relubricated via a lubrication nipple in the housing. Bearings and housings of this product range can be used at operating temperatures from -30 deg C to +80 deg C. Benefits: Closed construction makes this bearing suitable for use on shafts, excellent running characteristics, can be relubricated |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 40mm
- Width:
- 58mm
Technical
Technical

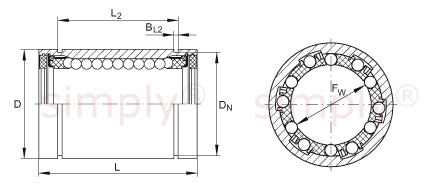

| Fw | 25mm |
|---|---|
| D | 40mm |
| L | 58mm |
| Numer of rows of balls | 6 |
| BL2 | 1.85mm |
| DN | 37.5mm |
| L2 | 43.7mm |
| Mass | 0.19 kg |
| Basic dynamic load rating C min | 2800 N |
| Basic static load rating C0 min | 2220 N |
| Basic dynamic load rating C max | 2950 N |
| Basic static load rating C0 max | 2850 N |
