SKU: JSC265SS-JUB

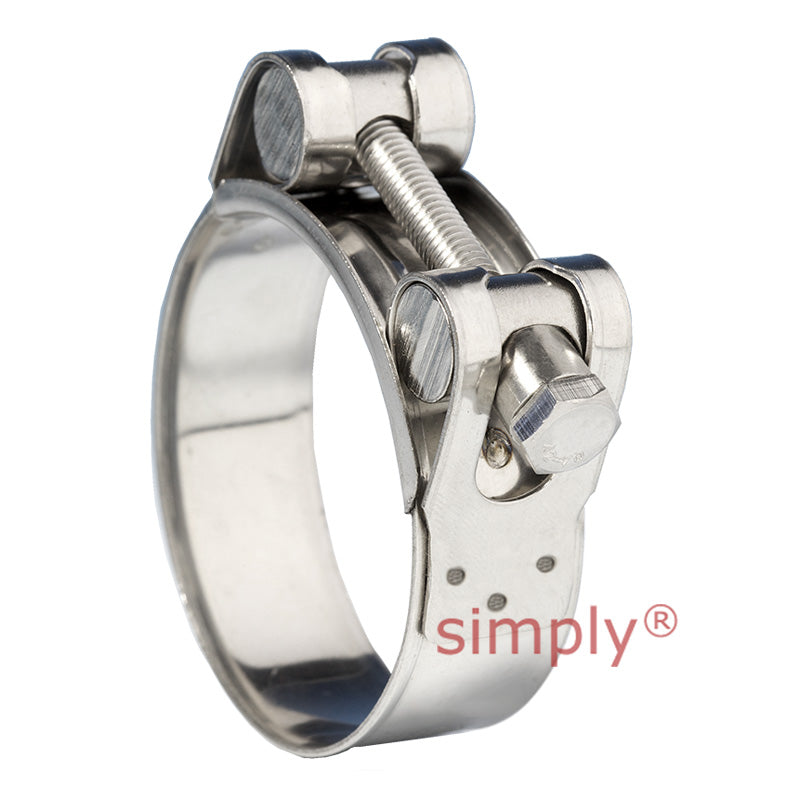

JSC265SS 304 Stainless Steel Jubilee Superclamp Clip Adjustment Range 253mm-265mm Band Width 25mm
JSC265SS 304 Stainless Steel Jubilee Superclamp Clip Adjustment Range 253mm-265mm Band Width 25mm
Regular price
CHF 20.00
ex VAT
Regular price
Sale price
CHF 20.00
ex VAT
Low stock
Price Break
5+
CHF 17.54
10+
CHF 16.83
20+
CHF 16.48
50+
CHF 15.95
100+
CHF 15.59
500+
CHF 14.71
1000+
CHF 12.40
Description
Description
304 Stainless Steel Jubilee Superclamp Clips: Jubilee® Superclamps are heavy duty and suited where higher torque is required with a very tight seal such as delivery and suction hoses. Suitable for mining, quarrying, oil, gas and other offshore applications. Also suitable for waste water extraction and agricultural applications.
Benefits: Single nut adjustment, Smooth band to protect hose line, 360 degree seal.
- Brand / Quality:
- Jubilee - High Quality
- Width:
- 25mm
- Min Adjustment Range:
- 253mm
- Max Adjustment Range:
- 265mm
Technical
Technical
| Adjustment Range | 253mm - 265mm |
|---|---|
| Band Width (+/- 0.1) | 25mm |
| Band Thickness (+/- 0.1) | 1.5mm |
| Recommended Torque | 18.5Nm |
| Maximum Torque | 25Nm |
| Screw Head | 13mm |
