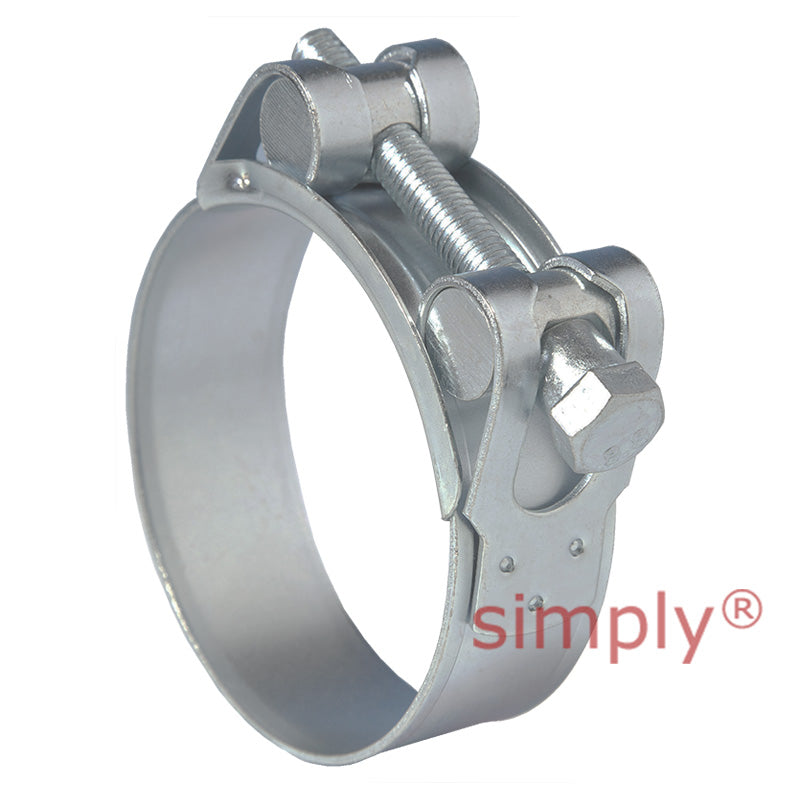

JSC112MS Zinc Plated Steel Jubilee Superclamp Clip Adjustment Range 104mm - 112mm Band Width 25mm

SKU: JSC112MS-JUB

JSC112MS Zinc Plated Steel Jubilee Superclamp Clip Adjustment Range 104mm - 112mm Band Width 25mm

CHF 7.00 ex VAT
CHF 7.00
ex VAT
In stock

Quantity Price Breaks

3 CHF 6.23
5 CHF 5.88
9 CHF 5.81
19 CHF 5.74
49 CHF 5.67
74 CHF 5.60
99 CHF 5.25
199 CHF 5.18
249 CHF 5.11
499 CHF 5.04
999 CHF 4.90
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
JSC112MS Zinc Plated Steel Jubilee Superclamp Clip Adjustment Range 104mm - 112mm Band Width 25mm
SKU: JSC112MS-JUB

JSC112MS Zinc Plated Steel Jubilee Superclamp Clip Adjustment Range 104mm - 112mm Band Width 25mm

CHF 7.00 ex VAT
CHF 7.00
ex VAT

Description

Zinc Plated Steel Jubilee Superclamp Clips: Jubilee® Superclamps are heavy duty and suited where higher torque is required with a very tight seal such as delivery and suction hoses. Suitable for mining, quarrying, oil, gas and other offshore applications. Also suitable for waste water extraction and agricultural applications.
Benefits: Single nut adjustment, Smooth band to protect hose line, 360 degree seal.

Technical

Adjustment Range = 104mm - 112mm
Band Width (+/- 0.1) = 25mm
Band Thickness (+/- 0.1) = 1.5mm
Recommended Torque = 18.5Nm
Maximum Torque = 25Nm
Screw Head = 13mm
