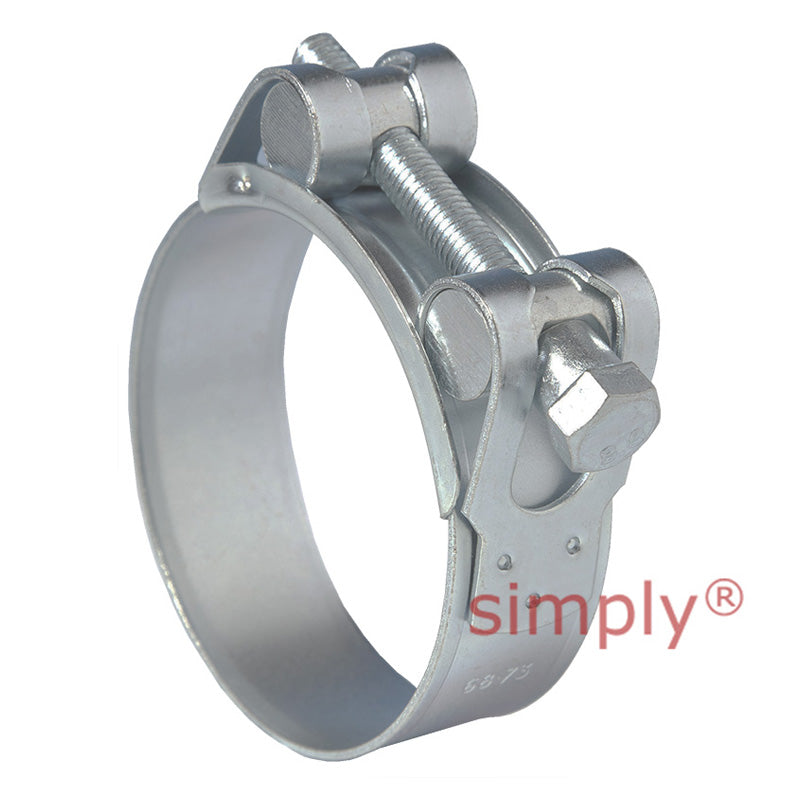

JSC073MS Zinc Plated Steel Jubilee Superclamp Clip Adjustment Range 68mm - 73mm Band Width 25mm

SKU: JSC073MS-JUB

JSC073MS Zinc Plated Steel Jubilee Superclamp Clip Adjustment Range 68mm - 73mm Band Width 25mm

CHF 6.00 ex VAT
CHF 6.00
ex VAT
Not in stock

Quantity Price Breaks

3 CHF 5.34
5 CHF 5.04
9 CHF 4.98
19 CHF 4.92
49 CHF 4.86
74 CHF 4.80
99 CHF 4.50
199 CHF 4.44
249 CHF 4.38
499 CHF 4.32
999 CHF 4.20
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
JSC073MS Zinc Plated Steel Jubilee Superclamp Clip Adjustment Range 68mm - 73mm Band Width 25mm
SKU: JSC073MS-JUB

JSC073MS Zinc Plated Steel Jubilee Superclamp Clip Adjustment Range 68mm - 73mm Band Width 25mm

CHF 6.00 ex VAT
CHF 6.00
ex VAT

Description

Zinc Plated Steel Jubilee Superclamp Clips: Jubilee® Superclamps are heavy duty and suited where higher torque is required with a very tight seal such as delivery and suction hoses. Suitable for mining, quarrying, oil, gas and other offshore applications. Also suitable for waste water extraction and agricultural applications.
Benefits: Single nut adjustment, Smooth band to protect hose line, 360 degree seal.

Technical

Adjustment Range = 68mm - 73mm
Band Width (+/- 0.1) = 25mm
Band Thickness (+/- 0.1) = 1.5mm
Recommended Torque = 18.5Nm
Maximum Torque = 25Nm
Screw Head = 13mm
