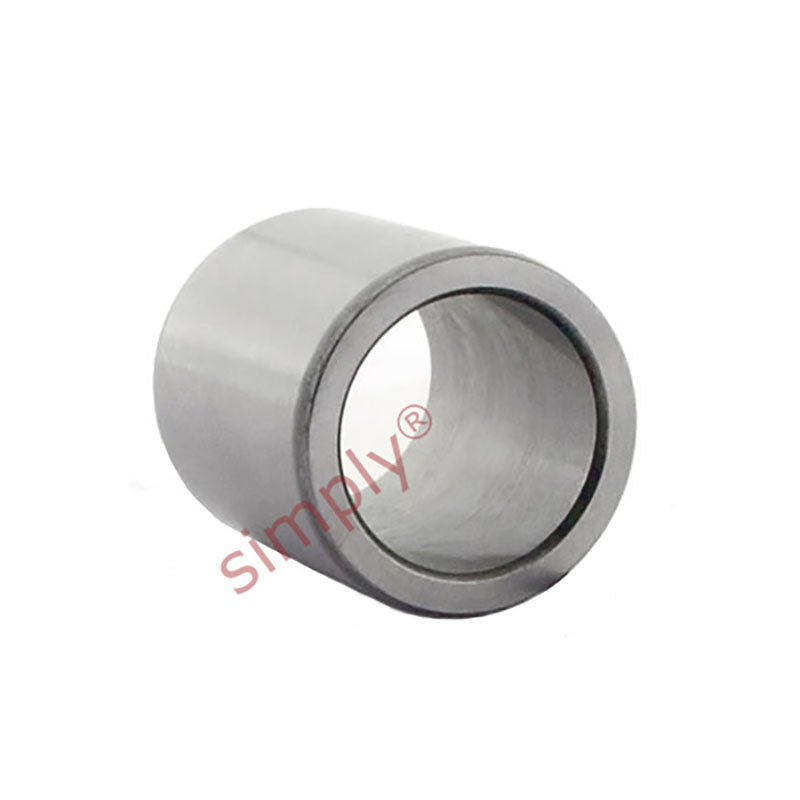

Budget Needle Roller Inner Ring IR10x13x12.5mm

SKU: IR10x13x12.5-EU

Budget Needle Roller Inner Ring IR10x13x12.5mm

CHF 4.00 ex VAT
CHF 4.00
ex VAT
In stock

Quantity Price Breaks

10 CHF 3.56
19 CHF 3.36
29 CHF 3.32
39 CHF 3.28
49 CHF 3.24
74 CHF 3.20
99 CHF 3.00
199 CHF 2.96
249 CHF 2.92
499 CHF 2.88
999 CHF 2.80
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
Budget Needle Roller Inner Ring IR10x13x12.5mm
SKU: IR10x13x12.5-EU

Budget Needle Roller Inner Ring IR10x13x12.5mm

CHF 4.00 ex VAT
CHF 4.00
ex VAT

Description

Budget Inner Rings: Made from carbon chromium steel are hardened and ground to their final dimensions. To facilitate the use with needle roller bearings a lead in either side of the sleeve is provided. Some sizes are available with a lubrication hole and are suffixed with IS1.
Benefits: Hardened and ground, precision component, lead in for easier assembly.

Technical

d = 10mm
F = 13mm
B = 12.5mm
r1r2 = 0.3mm
Weight = 5.2 g
