SKU: HN0610-EU

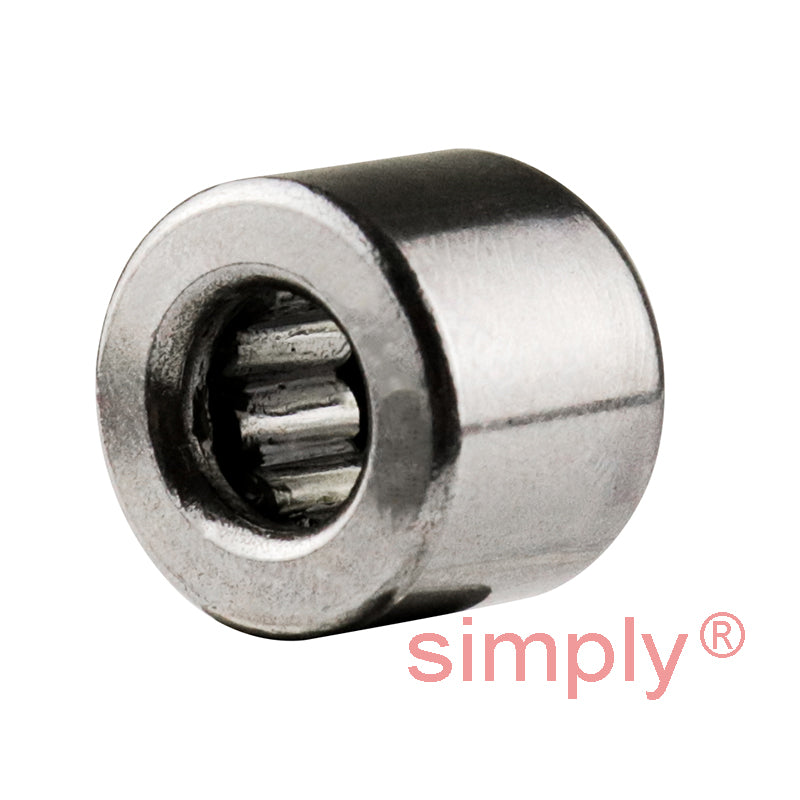

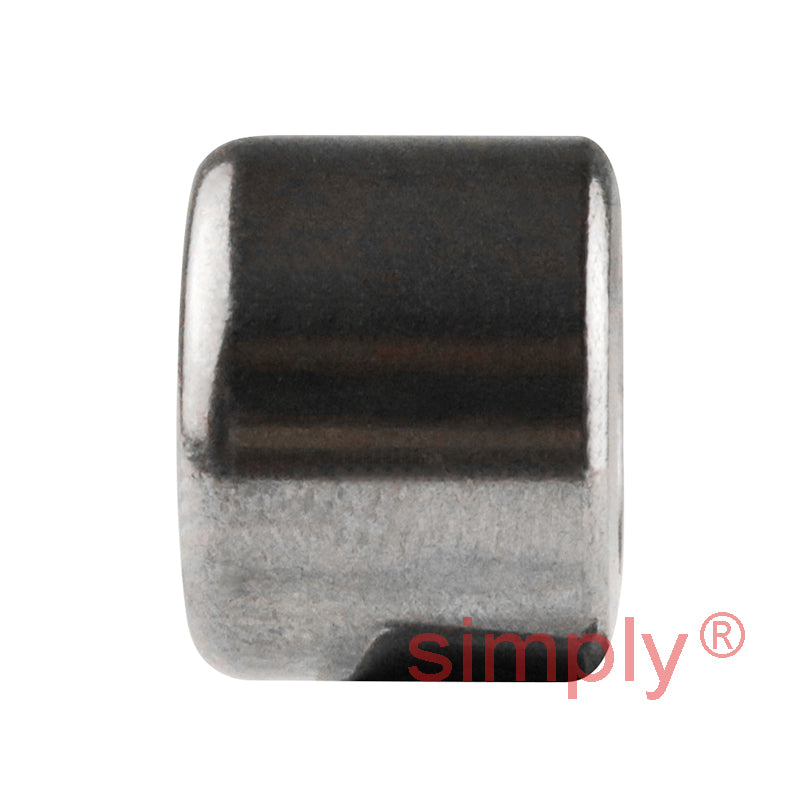

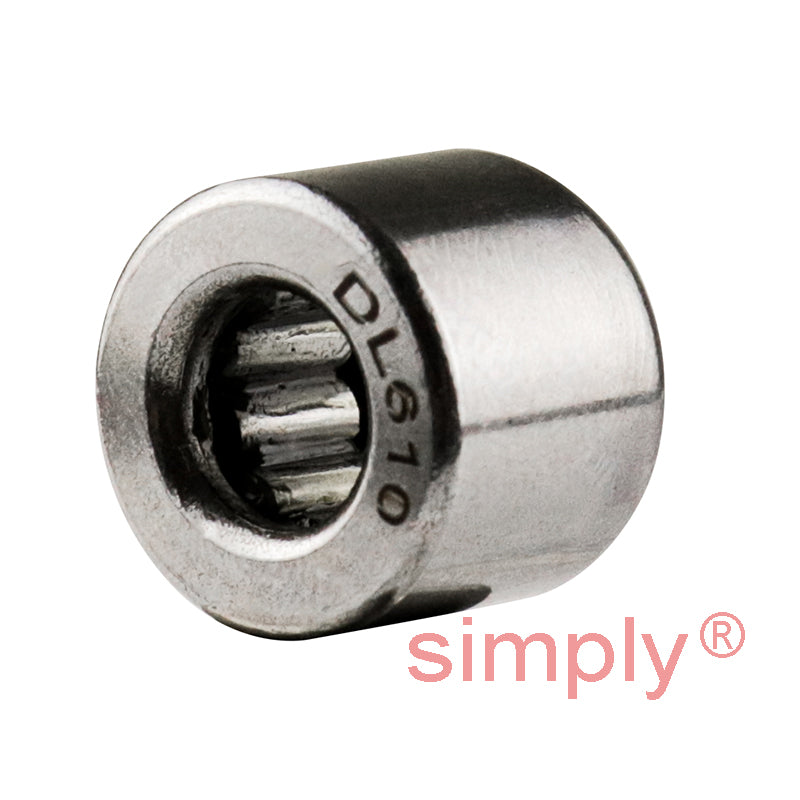

Budget HN0610 Open Ended Drawn Cup Type Full Complement Needle Roller Bearing 6x12x10mm
Budget HN0610 Open Ended Drawn Cup Type Full Complement Needle Roller Bearing 6x12x10mm
Regular price
CHF 8.00
ex VAT
Regular price
Sale price
CHF 8.00
ex VAT
Equivalent to: HJ0610 HK0610V DL0610 DL610
In stock
Price Break
10+
CHF 6.38
19+
CHF 6.03
29+
CHF 5.95
39+
CHF 5.88
49+
CHF 5.81
74+
CHF 5.74
99+
CHF 5.38
199+
CHF 5.31
249+
CHF 5.24
499+
CHF 5.16
999+
CHF 5.02
Description
Description

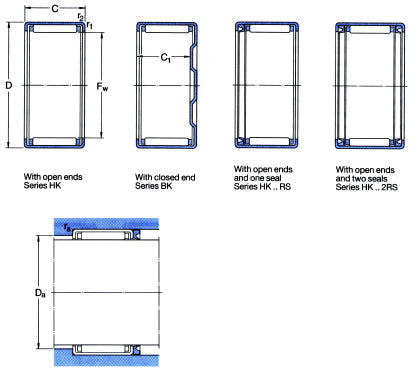

Full Complement Needle Roller Bearings: Of similar construction to the common HK and TA series needle roller bearings but having no cage and twice the number of rollers occupying the same space to permit greater load carrying capacity. Often referred to as crowded roller construction. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 6mm
- Outside Diameter:
- 12mm
- Width:
- 10mm
Technical
Technical
| Bore | 6mm |
|---|---|
| Outside diameter | 12mm |
| Width | 10mm |
| Radius r min | 0.4mm |
| Dynamic Load (kN) | 2.9 |
| Static Load (kN) | 3.8 |
| Speed rpm | 13200 |
| Weight | 0.0034 kg |
