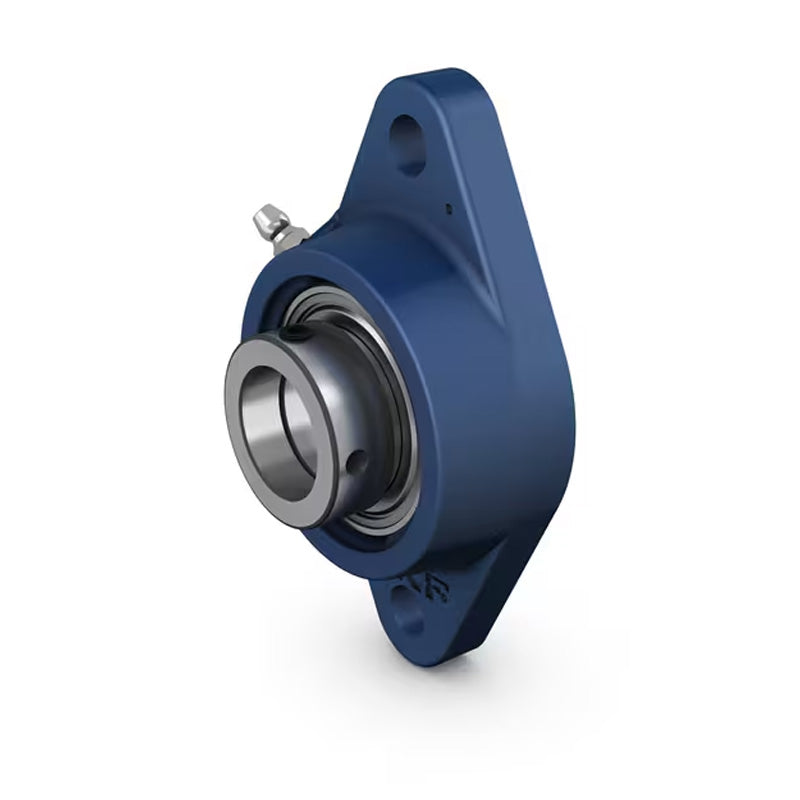

• SKF FYTB35WF Oval Cast Housing with Eccentric Collar 35mm Insert
1 1

SKU: FYTB35WF-SKF

SKF FYTB35WF Oval Cast Housing with Eccentric Collar 35mm Insert

SKF FYTB35WF Oval Cast Housing with Eccentric Collar 35mm Insert
CHF 82.00 ex VAT
CHF 82.00 ex VAT
Sale Sold out

In stock

Price Break
10+ CHF 65.41
20+ CHF 61.73
30+ CHF 61.00
40+ CHF 60.26
50+ CHF 59.53
75+ CHF 58.79
100+ CHF 55.12
200+ CHF 54.38
250+ CHF 53.65
500+ CHF 52.91
1000+ CHF 51.44
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF Oval Flanged Y-bearing Units with Cast Housing and Eccentric Collar: These units have an oval flange and two holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads.
Benefits: Grease fitting allows re-lubrication
Brand / Quality:
SKF - High Quality
Inside Diameter:
35mm
Style:
FYTB
Bolt Hole Centres:
130mm

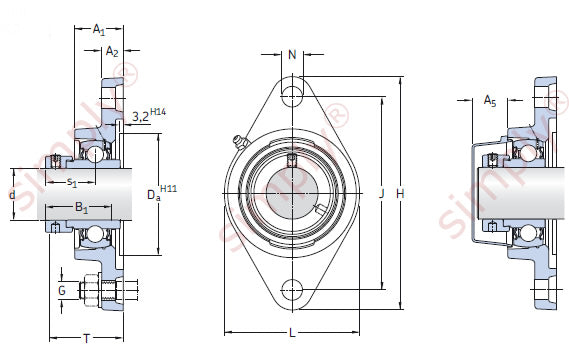

Technical
d 35mm
A1 34.5mm
A2 13mm
B1 51.1mm
Da 88.9mm
H 156mm
J 130mm
L 96mm
N 14mm
G 12mm
s1 32.3mm
T 53.3mm
Static load Cr 15.3 kN
Dynamic load Cor 25.5 kN
Fatigue load limit Pu 0.655 kN
Limiting speed 5300 rpm
A5 22mm
Weight 1.4 kg
Compatible end cover closed ECY207
