SKU: FBL-M14-DUN

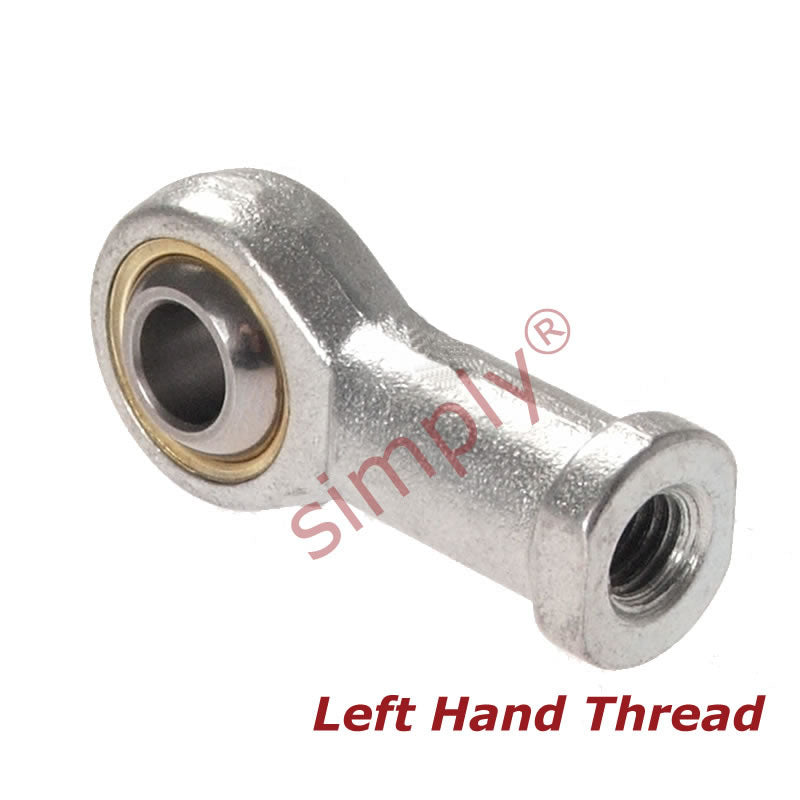

Dunlop FBL-M14 Left Hand Metric Steel / Bronze Lined Maintenance Required Plain Female Rod End M14x2 Thread - Allow 7-10 Days
Dunlop FBL-M14 Left Hand Metric Steel / Bronze Lined Maintenance Required Plain Female Rod End M14x2 Thread - Allow 7-10 Days
Regular price
CHF 19.00
ex VAT
Regular price
Sale price
CHF 19.00
ex VAT
Equivalent to: PHS14L
In stock
Description
Description
|
FB Series Maintenance Required Female Rod Ends: The FB series are a standard range of maintenance required general purpose female rod ends suitable for medium heavy industrial/mechanical load applications requiring low friction and good wear resistance, available in both metric and imperial bore and thread sizes. Temperature range -34c to +149c Benefits: Low friction, extended wear life |
- Brand / Quality:
- Dunlop - High Quality
- Thread Size:
- M14x2
- Thread M / F:
- Female
- Thread Direction:
- Left Hand
- Material:
- Bronze Lined
Technical
Technical
| Bore size | 14mm |
|---|---|
| Thread | M14x2 |
| W | 19mm |
| H | 13.5mm |
| D | 34mm |
| L1 | 57mm |
| L2 | 27mm |
| O | 16.8mm |
| AF | 22mm |
| Static load | 22125 N |
