SKU: FBL-M10S-DUN

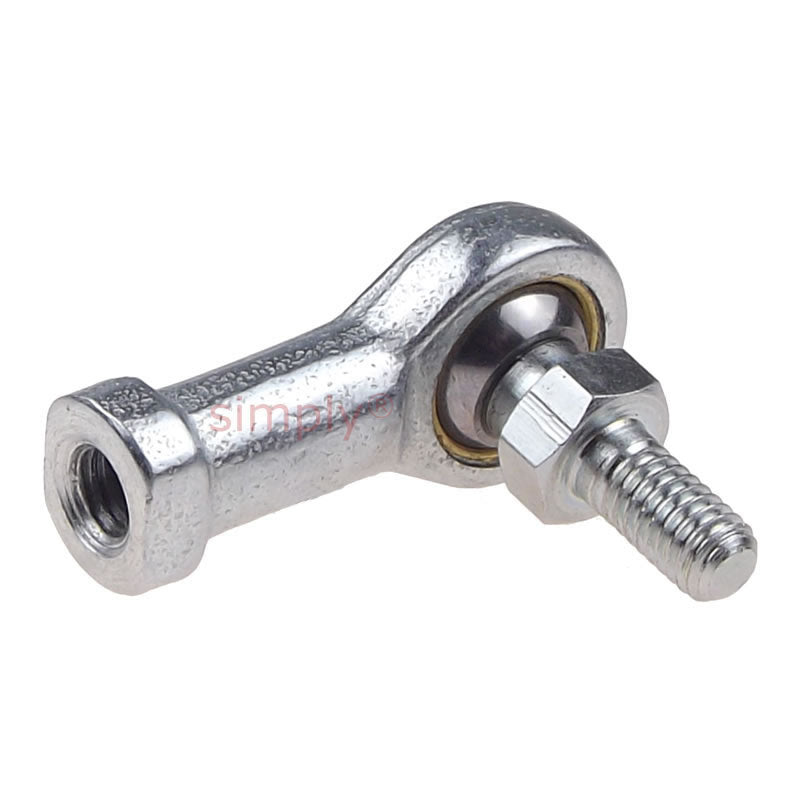

Dunlop FBL-M10S Left Hand Metric Steel / Bronze Lined Maintenance Required Studded Female Rod End M10x1.5 Thread
Dunlop FBL-M10S Left Hand Metric Steel / Bronze Lined Maintenance Required Studded Female Rod End M10x1.5 Thread
Regular price
CHF 16.00
ex VAT
Regular price
Sale price
CHF 16.00
ex VAT
Equivalent to: PHS10L+STUD
In stock
Description
Description
|
FBS Studded Series Maintenance Required Female Rod Ends: These studded FBS series are a standard range of maintenance required general purpose female rod ends suitable for medium heavy industrial/mechanical load applications requiring low friction and good wear resistance, available in both metric and imperial bore and thread sizes. Temperature range -34c to +149c. Stud, steel 230M07PB, zinc plated white and blue passivate (silver/clear). Benefits: Low friction, extended wear life |
- Brand / Quality:
- Dunlop - High Quality
- Thread Size:
- M10x1.5
- Thread M / F:
- Female
- Thread Direction:
- Left Hand
- Material:
- Bronze Lined
Technical
Technical
| Stud size | M10 |
|---|---|
| Thread | M10x1.5 |
| A | 20mm |
| B | 20mm |
| C | 18mm |
| K | 17mm |
| Static load | 4240 N |
