SKU: FBL-06-DUN

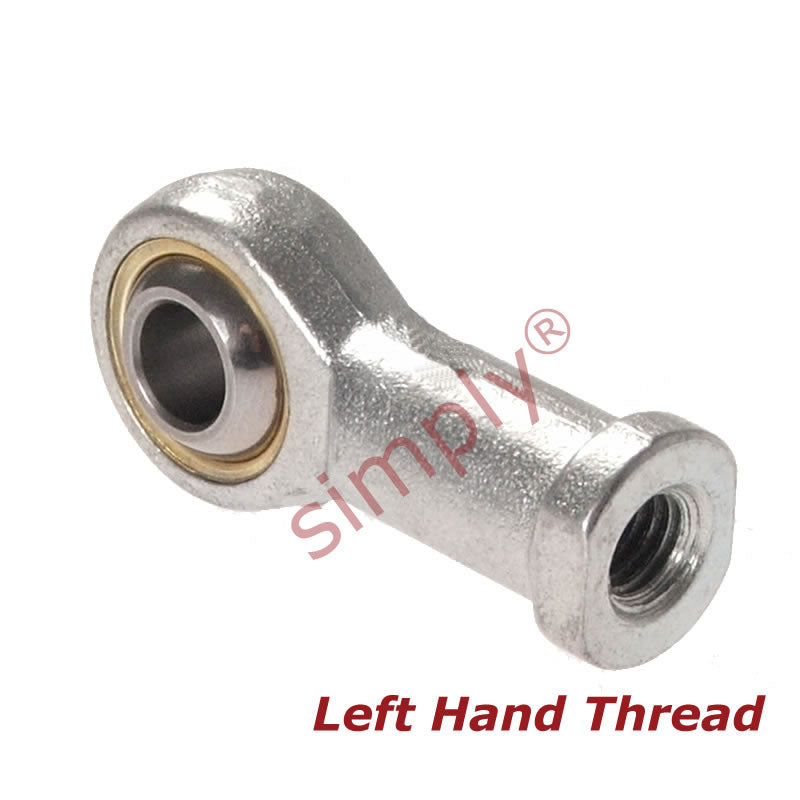

Dunlop FBL-06 Left Hand Imperial Steel / Bronze Lined Maintenance Required Plain Female Rod End 3/8 UNF Thread - Allow 7-10 Days
Dunlop FBL-06 Left Hand Imperial Steel / Bronze Lined Maintenance Required Plain Female Rod End 3/8 UNF Thread - Allow 7-10 Days
Regular price
CHF 15.00
ex VAT
Regular price
Sale price
CHF 15.00
ex VAT
In stock
Description
Description
|
FB Series Maintenance Required Female Rod Ends: The FB series are a standard range of maintenance required general purpose female rod ends suitable for medium heavy industrial/mechanical load applications requiring low friction and good wear resistance, available in both metric and imperial bore and thread sizes. Temperature range -34c to +149c Benefits: Low friction, extended wear life |
- Brand / Quality:
- Dunlop - High Quality
- Thread Size:
- 3/8 UNF
- Thread M / F:
- Female
- Thread Direction:
- Left Hand
- Material:
- Bronze Lined
Technical
Technical
| Bore size | 3/8 inch |
|---|---|
| Thread | 3/8 UNF |
| W | 0.5 inch |
| H | 0.406 inch |
| D | 1 inch |
| L1 | 1.625 inch |
| L2 | 0.932 inch |
| O | 0.516 inch |
| AF | 0.562 inch |
| Static load | 13640 N |
