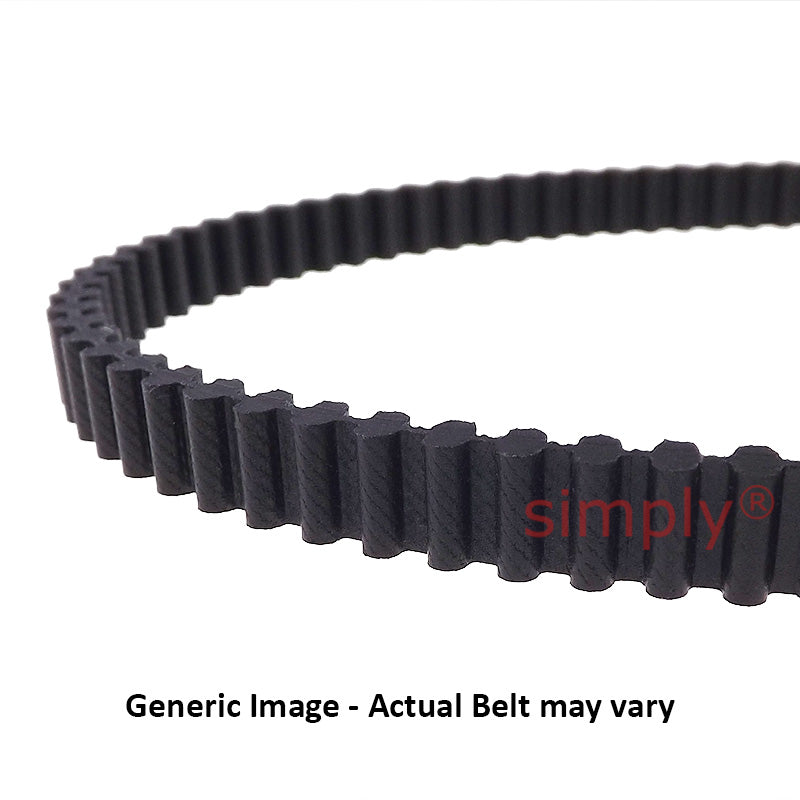

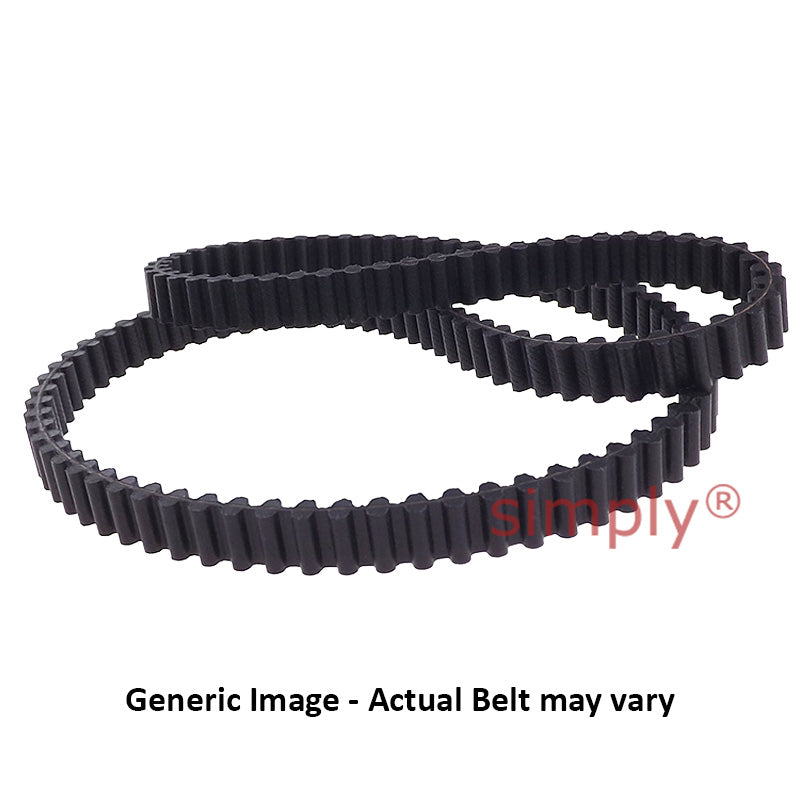

DD1000-5M-9 Major Brand Double-Sided Timing Belt 9mm Wide 5mm Pitch 200 Teeth
DD1000-5M-9 Major Brand Double-Sided Timing Belt 9mm Wide 5mm Pitch 200 Teeth
DD1000-5M-9 Major Brand Double-Sided Timing Belt 9mm Wide 5mm Pitch 200 Teeth
DD1000-5M-9 Major Brand Double-Sided Timing Belt 9mm Wide 5mm Pitch 200 Teeth

SKU: DD1000-5M-9

DD1000-5M-9 Major Brand Double-Sided Timing Belt 9mm Wide 5mm Pitch 200 Teeth

CHF 32.00 ex VAT
CHF 32.00
ex VAT
Equivalent to: 5M-1000
In stock

Quantity Price Breaks

3 CHF 28.48
5 CHF 26.88
10 CHF 26.56
15 CHF 26.24
20 CHF 25.92
30 CHF 25.60
40 CHF 24.00
50 CHF 23.68
60 CHF 23.36
75 CHF 23.04
100 CHF 22.40
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
DD1000-5M-9 Major Brand Double-Sided Timing Belt 9mm Wide 5mm Pitch 200 Teeth
DD1000-5M-9 Major Brand Double-Sided Timing Belt 9mm Wide 5mm Pitch 200 Teeth
SKU: DD1000-5M-9

DD1000-5M-9 Major Brand Double-Sided Timing Belt 9mm Wide 5mm Pitch 200 Teeth

CHF 32.00 ex VAT
CHF 32.00
ex VAT

Description

Double-Sided HTD Timing Belts 5mm Pitch Belt: Double-sided belts have teeth equally constructed on each side of the belt, which enables them to mesh with toothed pulleys on both the inside and outside. The construction of the belts is the same as standard Metric belts, except that the nylon facing is also on the backing teeth, enabling full torque transmission from each side of the belt.
Benefits: Reverse motion between internal and external pulleys
Require only one belt to drive a series of pulleys
Simplified design layouts and weight reduction.

Technical

Pitch length = 1000mm
Belt width = 9mm
Number of teeth = 200
Tooth pitch t = 5mm
Belt thickness h< = sub>
s< = /sub>
= 5.4mm
Tooth height h< = sub>
t< = /sub>
= 2.1mm
