SKU: C-UKT307SD1/HS2307-NTN

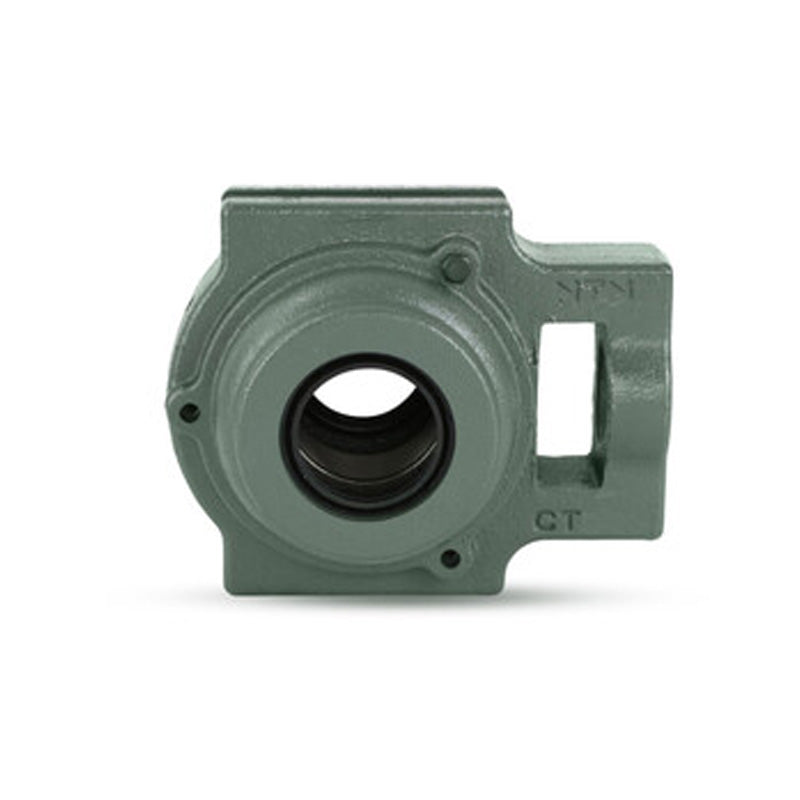

NTN C-UKT307SD1/HS2307 Imperial Cast Iron Take Up Unit with Cast Iron Cover - Open Version - Insert and Adaptor Sleeve Fits 1-1/8 inch Shaft - Allow 2-3 Days
NTN C-UKT307SD1/HS2307 Imperial Cast Iron Take Up Unit with Cast Iron Cover - Open Version - Insert and Adaptor Sleeve Fits 1-1/8 inch Shaft - Allow 2-3 Days
Out of stock
Description
Description
UKT300 Series Heavy Duty Take-Up Unit with Adaptor Sleeve Mounted: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, with adaptor
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 28.58mm = 1.125 (1-1/8) inch
- Style:
- UKT
Technical
Technical
| Shaft diameter | 1-1/8 inch |
|---|---|
| N<sub>1</sub> | 25/32 inch |
| L<sub>2</sub> | 21/32 inch |
| H<sub>2</sub> | 2-15/16 inch |
| N<sub>2</sub> | 1-25/32 inch |
| N | 1-3/16 inch |
| L<sub>3</sub> | 3-5/32 inch |
| A<sub>1</sub> | 0.63 inch |
| H<sub>1</sub> | 3-15/16 inch |
| H | 4-3/8 inch |
| A<sub>2</sub> | 1-1/4 inch |
| A | 1-25/32 inch |
| r | 2-7/32 inch |
| L<sub>1</sub> | 3-11/16 inch |
| B<sub>1</sub> | 1.693 inch |
| L<sub>4</sub> | 5-31/32 inch |
| A<sub>5</sub> | 3-3/4 inch |
| Mass | 7.3 lbs |
