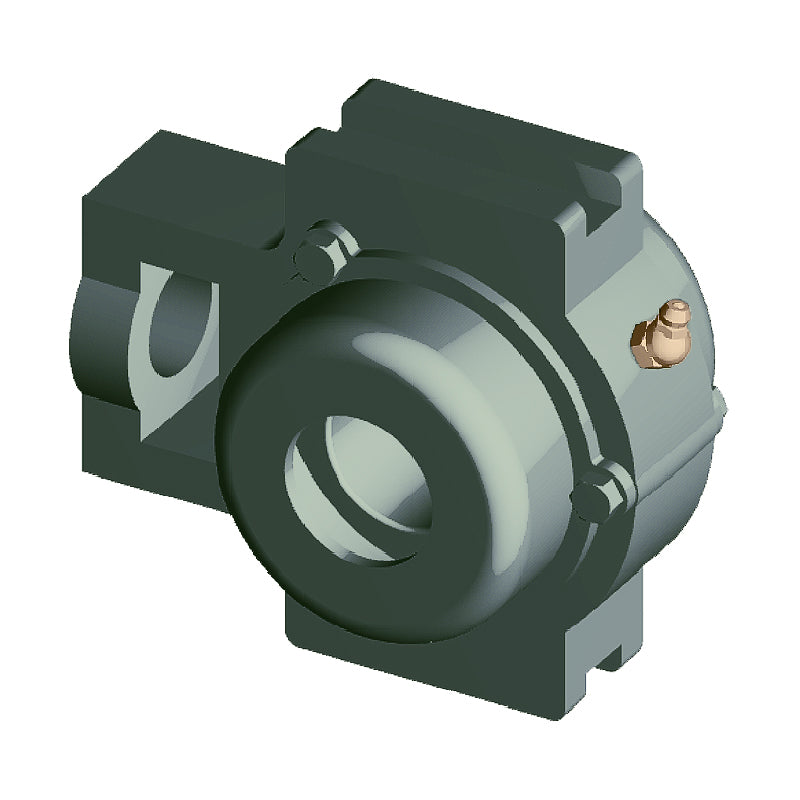

NTN C-UCTX15-300D1 Imperial Cast Iron Take Up Unit with 3 inch Bore Bearing Unit with Cast Iron Cover - Open Version - Allow 2-3 Days
NTN C-UCTX15-300D1 Imperial Cast Iron Take Up Unit with 3 inch Bore Bearing Unit with Cast Iron Cover - Open Version - Allow 2-3 Days
Out of stock
Share this product
Description
Description
UCTX Series Medium Duty Take Up Units: These medium-duty bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 76.2mm = 3 Inch
- Style:
- UCTX
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 3 inch |
| N<sub>1</sub> | 1-1/4 inch |
| L<sub>2</sub> | 29/32 inch |
| H<sub>2</sub> | 4-3/8 inch |
| N<sub>2</sub> | 2-3/4 inch |
| N | 1-5/8 inch |
| L<sub>3</sub> | 4-3/4 inch |
| A<sub>1</sub> | 1.102 inch |
| H<sub>1</sub> | 6-1/2 inch |
| H | 7-1/4 inch |
| L | 9-1/4 inch |
| A<sub>2</sub> | 1-7/8 inch |
| A | 2-3/4 inch |
| r | 3-3/4 inch |
| L<sub>1</sub> | 5-1/2 inch |
| B | 3.252 inch |
| S | 1.311 inch |
| L<sub>4</sub> | 9-1/4 inch |
| A<sub>5</sub> | 5-23/32 inch |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 80.5 kN |
| Static load C<sub>0r</sub> | 53 kN |
| Fatigue load limit C<sub>u</sub> | 3.95 kN |
| --- | Unit information |
| Mass | 24 lbs |
