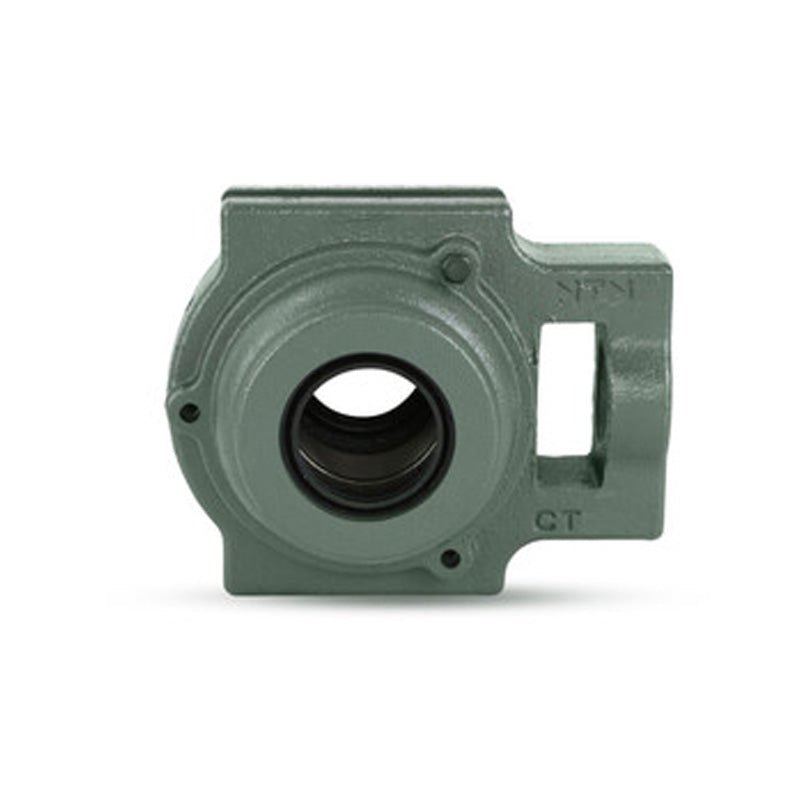

NTN C-UCT315D1 Metric Cast Iron Take Up Unit with 75mm Bore Bearing Unit with Cast Iron Cover - Open Version - Allow 2-3 Days
NTN C-UCT315D1 Metric Cast Iron Take Up Unit with 75mm Bore Bearing Unit with Cast Iron Cover - Open Version - Allow 2-3 Days
Out of stock
Share this product
Description
Description
UCT300 Series Heavy Duty Take Up Units: These heavy-duty bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 75mm
- Style:
- UCT
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 75mm |
| N<sub>1</sub> | 36mm |
| L<sub>2</sub> | 27mm |
| H<sub>2</sub> | 132mm |
| N<sub>2</sub> | 85mm |
| N | 46mm |
| L<sub>3</sub> | 150mm |
| A<sub>1</sub> | 26mm |
| H<sub>1</sub> | 192mm |
| H | 216mm |
| L | 262mm |
| A<sub>2</sub> | 55mm |
| A | 90mm |
| r | 102mm |
| L<sub>1</sub> | 160mm |
| B | 82mm |
| S | 32mm |
| L<sub>4</sub> | 268mm |
| A<sub>5</sub> | 150mm |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 126 kN |
| Static load C<sub>0r</sub> | 77 kN |
| Fatigue load limit C<sub>u</sub> | 5.55 kN |
| --- | Unit information |
| Mass | 17 kg |
